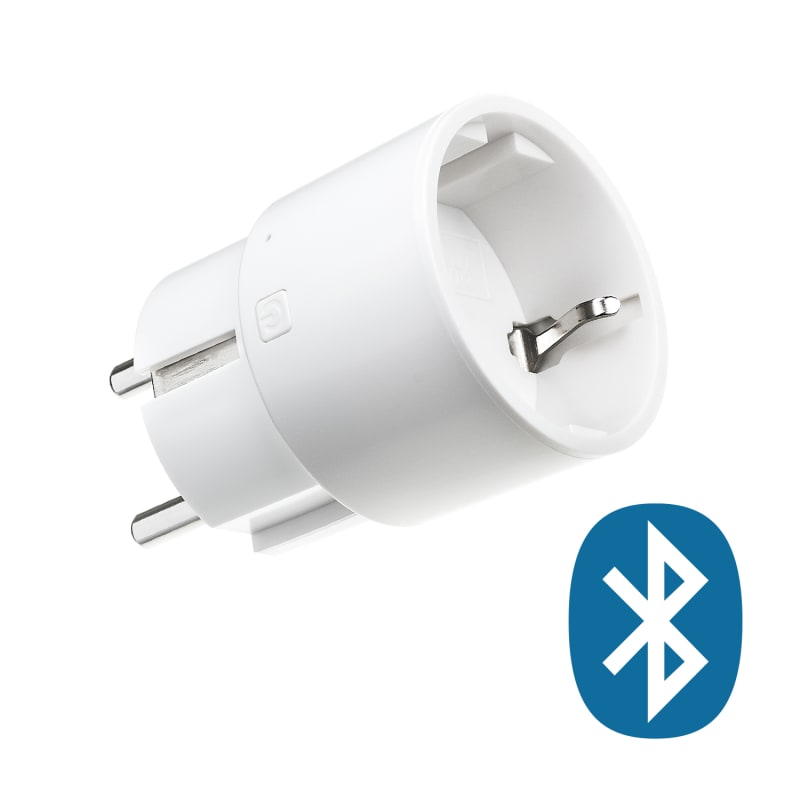

Smart PLUG 3.0 White

SG Armaturen 820810 PLUG 3.0 WHITE.

Manufacturer part number (MPN)

820810

EAN / GTIN

7021988208106

Sales unit

pcs

Package quantity

90 pcs

Wattage

Max 3000W

IP Class

IP20

Mounting

Surface, Indoor

Function

Integrated time control and astronomical clock

Standby power

<0.5W

Voltage

220-240V

Frequency (Hz)

50/60Hz

Overvoltage protection

Yes

Overload protection

Yes

Type

SG Smart / On-Off / Not dimmable

Luminaire class

Class I

Housing

Polycarbonat (PC)

Colour

White

Connection

Type F Schuko

Height (mm) H

68

Diameter (mm) D

44

Weight (kg) gross/net

0.07 / 0.047

Packaging dimensions (mm)

50 x 50 x 75

Number of linkable devices

1

Bus system KNX Secure

No

Bus system KNX Secure-RF (Radio Frequency)

No

Power consumption

0.5 W

Bus system KNX

No

Bus system KNX-RF (Radio Frequency)

No

Bus system radio frequency

No

Bus system LON

No

Bus system Powernet

No

Other bus systems

None

Radio frequency bidirectional

Yes

Local operation/hand operation

Yes

With LED indication

Yes

Max. switching power

3600 W

Max. switching power LED

2300 W

Output power

3600 W

Suitable for C-load

Yes

Max. number of switching contacts

2

Max. switching current

16 A

Rated current

16 A

Rated operating voltage

220–240 V

Different phases connectable

No

With bus connection

No

Bus module detachable

No

Min. depth of built-in installation box

0 mm

Modular expandability

No

Degree of protection (IP)

IP20

Country of origin

China

HS Code

8536.69

• EAN 7021988208106
• SAP 1201008620
• Code 84361937
