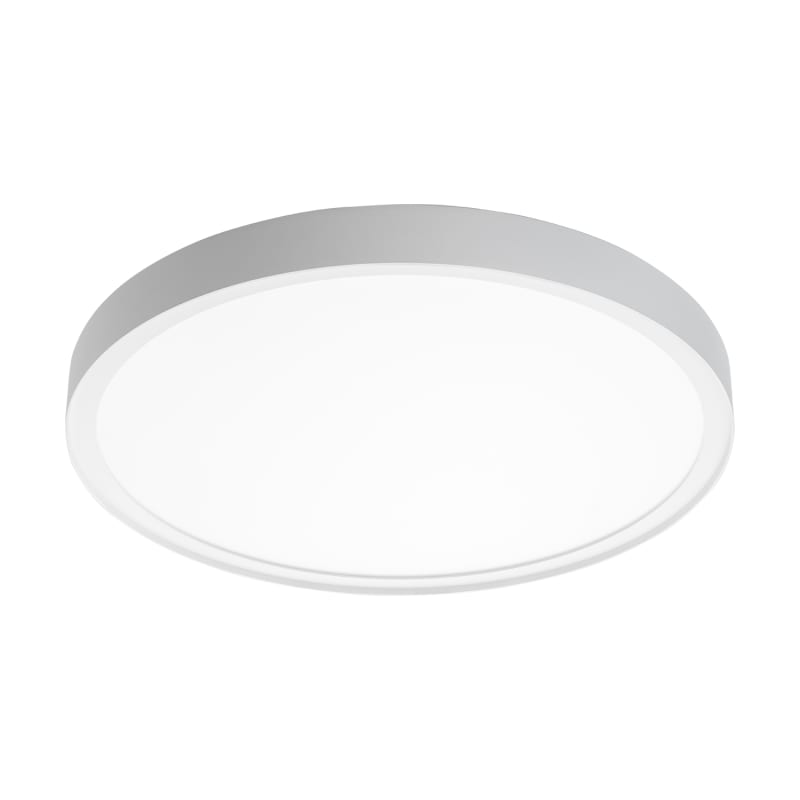

DISC 480 D/In White 34W/827
Part number606200EAN / GTIN7021986062007HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606200 DISC 480 D/In WHITE 2700K, 34, 4220lm, Ra>80, SDCM 3, L80/B20>100.000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606200
- EAN / GTIN
- 7021986062007
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 34 W
- Efficacy
- 124 lm/W
- Lumen
- 4220lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 34W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 4220lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,07
- Stroboscopic flicker (SVM)
- 0,05
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D/D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium/plastic
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 62
- Diameter (mm) D
- 467
- Weight (kg) gross/net
- 3.6 / 3.188
- Packaging dimensions (mm)
- 490 x 485 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062007
- SAP 1200880680
- Code 84120007
Product Documentation
Document preview: DISC 480 D/In White 34W/827 (606200) — Specification sheet
More from SG Armaturen
SG Armaturen

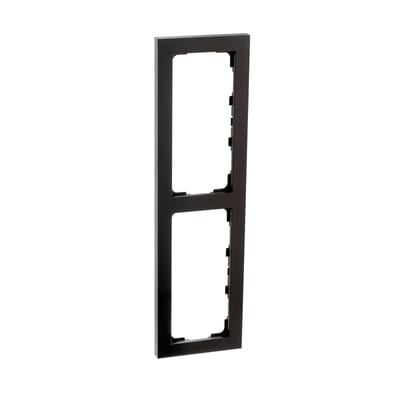

Frame 2+2 FOR Triple Socket SO
78173
SG Armaturen

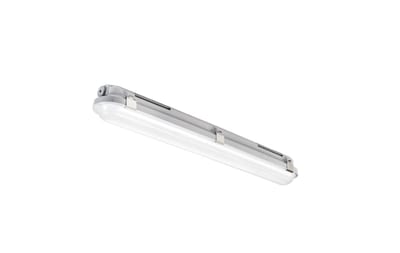

TYSNES66 650 14W/840 DALI
120038
SG Armaturen

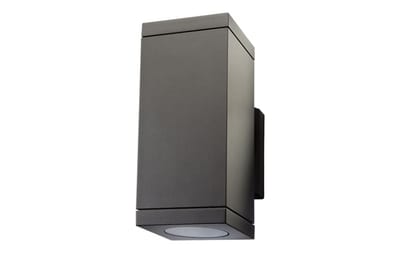

ECHO Graphite GU10 2X4,5W/827 IP54
623683
SG Armaturen

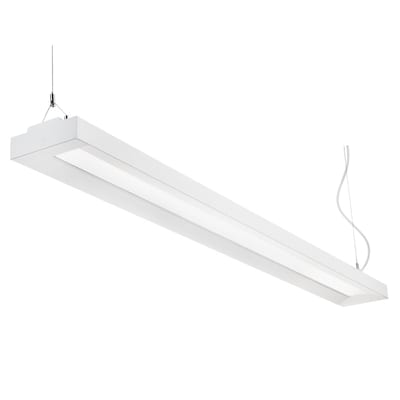

Ecoline 1600 D/In White 35W/830
212814
SG Armaturen

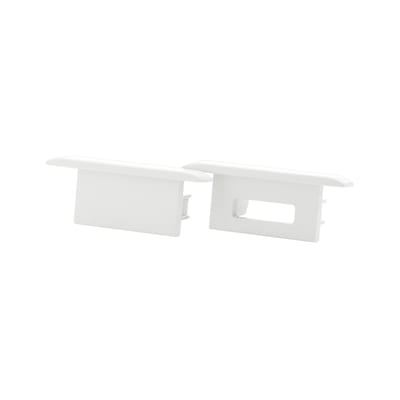

Stripline END CAP KIT Recessed White
391445
SG Armaturen

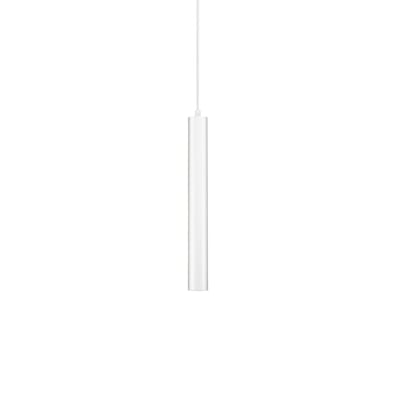

ZIP TUBE Pendant Micro 340mm (320500)
SG Armaturen
ZIP 1T Inspire 300 White 15W/927
300772
SG Armaturen

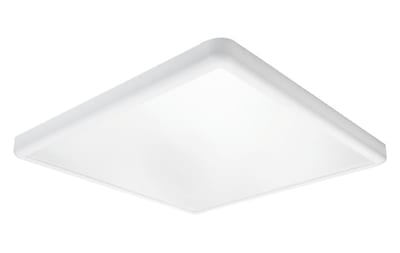

Sense Surface 600X600 28W/830 DALI
