SG Armaturen

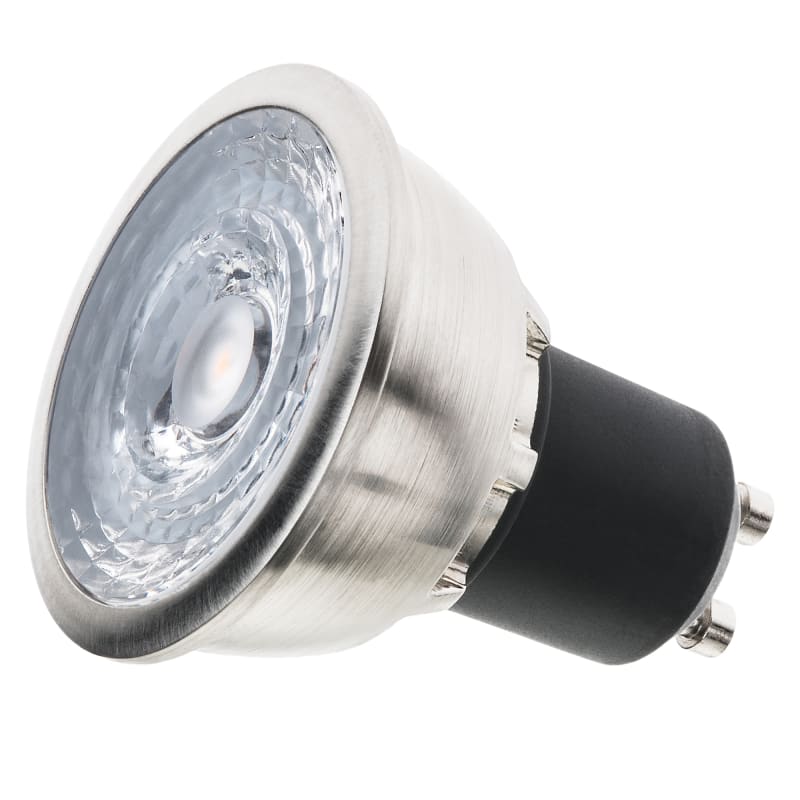

SG 6W Brushed Steel D2W 36° GU10
Part number830984EAN / GTIN7021988309841HS code8539.10
Lighting & Electrical Accessories
LED Lamps & Bulbs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 830984 SG GU10 LED with DimToWarm.
Technical Specifications
- Manufacturer part number (MPN)
- 830984
- EAN / GTIN
- 7021988309841
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 6 W
- Efficacy
- 58 lm/W
- Lumen
- 345lm
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- System wattage
- 6W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 52, C10: 54, C16: 86
- Type of light source
- LED
- Socket
- GU10
- Luminous flux
- 345lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Beam angle
- 36°
- Type
- Trailing edge
- Energy efficency class
- G
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Colour
- Brushed steel
- Length (mm) L
- 55
- Width (mm) W
- 50
- Height (mm) H
- 50
- Weight (kg) gross/net
- 0.065 / 0.0615
- Packaging dimensions (mm)
- 52 x 52 x 62
- Dimming Bluetooth
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming Touch and Dim
- No
- Dimming Wi-Fi
- No
- Dimming Zigbee
- No
- Suitable for electronic ballast
- No
- Suitable for magnetic ballast
- No
- Energy efficiency class according to EU regulation 2019/2015
- G
- With movement sensor
- No
- With twilight switch
- No
- No dim function
- No
- Nominal voltage
- 220–240 V
- Lamp power
- 6 W
- Voltage type
- AC
- Rated luminous flux according to IEC 62722-2-1
- 345 lm
- Rated luminous flux according to IEC 62612
- 345 lm
- Lamp efficacy
- 345 lm/W
- Luminous intensity
- 800 cd
- Colour rendering index CRI
- 90-100
- Lamp shape
- Reflector
- Filament lamp
- No
- Type of glass/cover
- Frosted
- Colour of light according to EN 12464-1
- Warm white < 3300 K
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimmable
- Yes
- Diameter
- 50 mm
- Length
- 55 mm
- Degree of protection (IP)
- IP00
- Energy efficiency class
- A+
- Min. number of switching cycles
- 100000
- Weighted energy consumption in 1000 hours
- 6 kWh
- Average nominal lifetime
- 50000 h
- Remote operation possible
- No
- With remote control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8539.10
Cross References
- EAN 7021988309841
- SAP 1200036794
- Code 81595377
Product Documentation
Document preview: SG 6W Brushed Steel D2W 36° GU10 (830984) — Specification sheet
