SG Armaturen

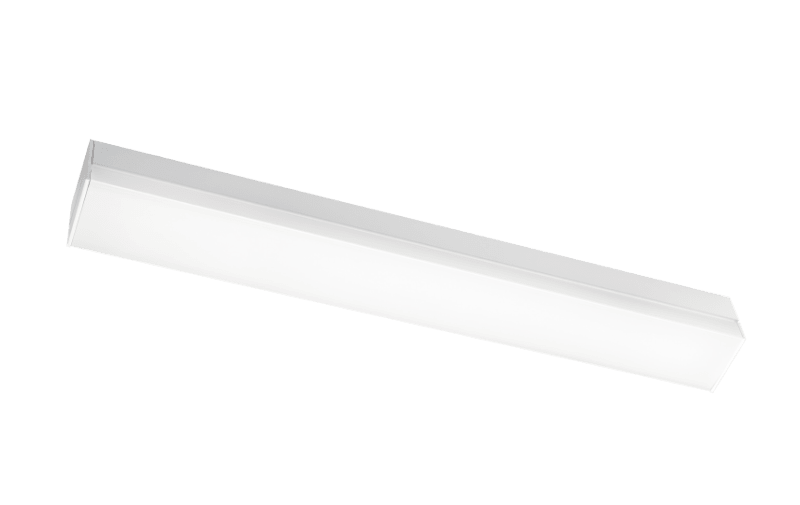

Prelude SQ White 16W/927 IP44
Part number111370EAN / GTIN7021981113704HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 111370 L80/B10>60 000 hours, 1490lm, 93 lm/W, SDCM3, IP44 (horizontal) IP20 (vertical), IK05, phase-cut dim.
Technical Specifications
- Manufacturer part number (MPN)
- 111370
- EAN / GTIN
- 7021981113704
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP44
- Power
- 16 W
- Efficacy
- 118 lm/W
- Lumen
- 1530lm
- IP Class
- IP44 (mounted horizontally) / IP40 (mounted vertically)
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
- System wattage
- 13W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 1530lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Acrylic diffuser
- UGR
- UGR<28
- Visible flicker (PstLM)
- 0.04
- Stroboscopic flicker (SVM)
- 0.04
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK05
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Width (mm) W
- 519
- Height (mm) H
- 59
- Depth (D)
- 62
- Weight (kg) gross/net
- 0.898 / 0.799
- Packaging dimensions (mm)
- 528 x 65 x 65
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981113704
- SAP 1200457312
- Code 82528438
Product Documentation
Document preview: Prelude SQ White 16W/927 IP44 (111370) — Specification sheet
