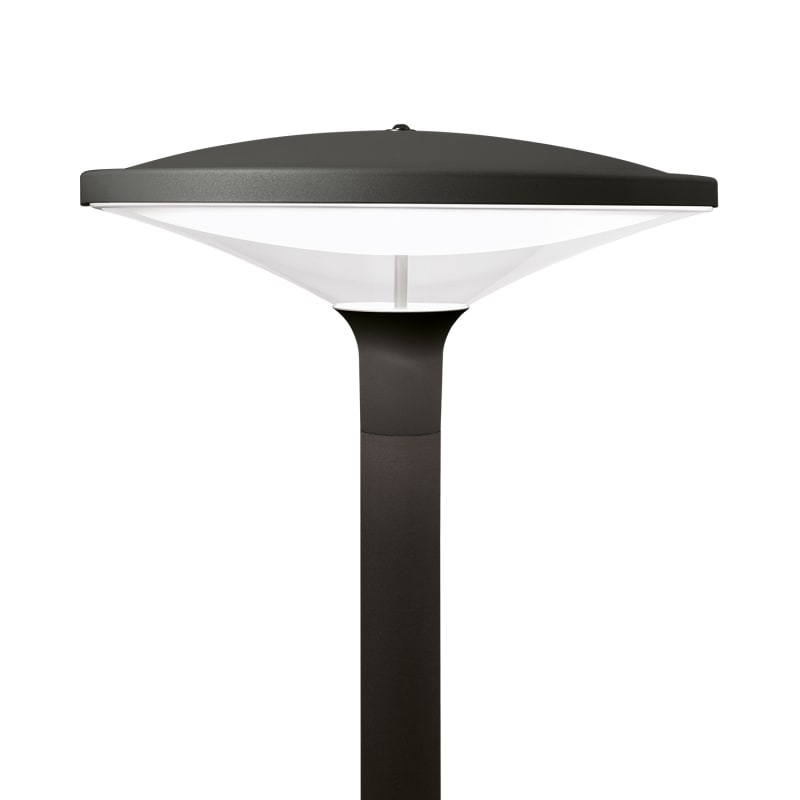

Place 2400LM BLACK 3000K
Part number641964EAN / GTIN7021986419641HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 641964 PLACE 2400lm BLACK 3000K, 21W, 2410lm, Ra>80, SDCM3, IK10, IP66, L90/B10 50.000.
Technical Specifications
- Manufacturer part number (MPN)
- 641964
- EAN / GTIN
- 7021986419641
- Sales unit
- pcs
- Colour temperature
- 3000 K
- Mounting method
- Post top
- Protection class according to IEC 61140
- II
- Width
- 600 mm
- Conductor cross section
- 1 mm²
- Housing colour
- Black
- Dimmable
- No
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 21 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 6 m
- Diameter
- 600 mm
- With light sensor
- No
- Number of poles
- 3
- Length
- 291 mm
- Height/depth
- 291 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- With presence detector
- No
- Material cover
- Plastic, opal
- Impact strength
- IK10
- With connection cable
- Yes
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP66
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Adjustable optics
- No
- Suitable for spigot size
- 60 mm
- Max. system power
- 21 W
- Colour of light
- White
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- No
- Type of wiring
- Ending
- Colour consistency (McAdam ellipse)
- SDCM3
- Rated ambient temperature according to IEC 62722-2-1
- 25 °C
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Zigbee
- No
- Luminaire efficacy
- 115 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Dimming DALI-2
- No
- Exchangeable control gear
- No
- Type of connection for sensor/communication module
- None
- Dimming D4i
- No
- Solar powered
- No
- Rated luminous flux according to IEC 62722-2- 1
- 2410 lm
- Power factor
- 100
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986419641
- SAP 1201015494
- Code 84368577
Product Documentation
Document preview: Place 2400LM BLACK 3000K (641964) — Specification sheet
