SG Armaturen

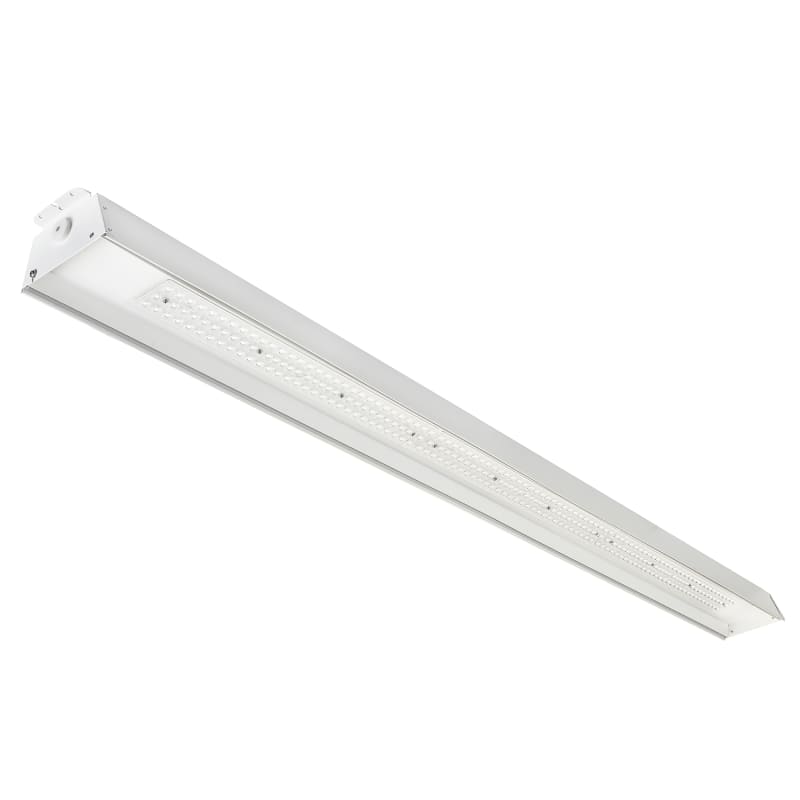

Arena 1700 Medium 22000LM 4000K DALI
Part number607053EAN / GTIN7021986070538HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 607053 ARENA 1700 MEDIUM 22000lm 4000K DALI, 133W, Ra>80, SDCM3, IP23, L81/B50>, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 607053
- EAN / GTIN
- 7021986070538
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Colour temperature
- 4000 K
- Efficacy
- 161 lm/W
- Lumen
- 21360lm
- IP Class
- IP23
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L81/B50>
- Mounting
- Suspended or surface, Indoor
- System wattage
- 133W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 9, B16: 15, C10: 16, C16: 26
- Leakage current (mA)
- 0.22
- Type of light source
- LED
- Luminous flux
- 21360lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Lens Medium
- Beam angle
- Medium
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0.02
- Stroboscopic flicker (SVM)
- 0
- Type
- DALI-2
- Luminaire class
- Class I
- Energy efficency class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Colour
- White RAL 9016
- Optics
- Acrylic (PMMA)
- Module
- 1700
- Connection
- 7-pole screwless terminal block with 7x2,5mm² through wiring
- Length (mm) L
- 1767
- Width (mm) W
- 135
- Height (mm) H
- 72
- Weight (kg) gross/net
- 5.45 / 5.05
- Packaging dimensions (mm)
- 1779 x 146 x 75
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986070538
- SAP 1200950178
- Code 84238342
Product Documentation
Document preview: Arena 1700 Medium 22000LM 4000K DALI (607053) — Specification sheet
