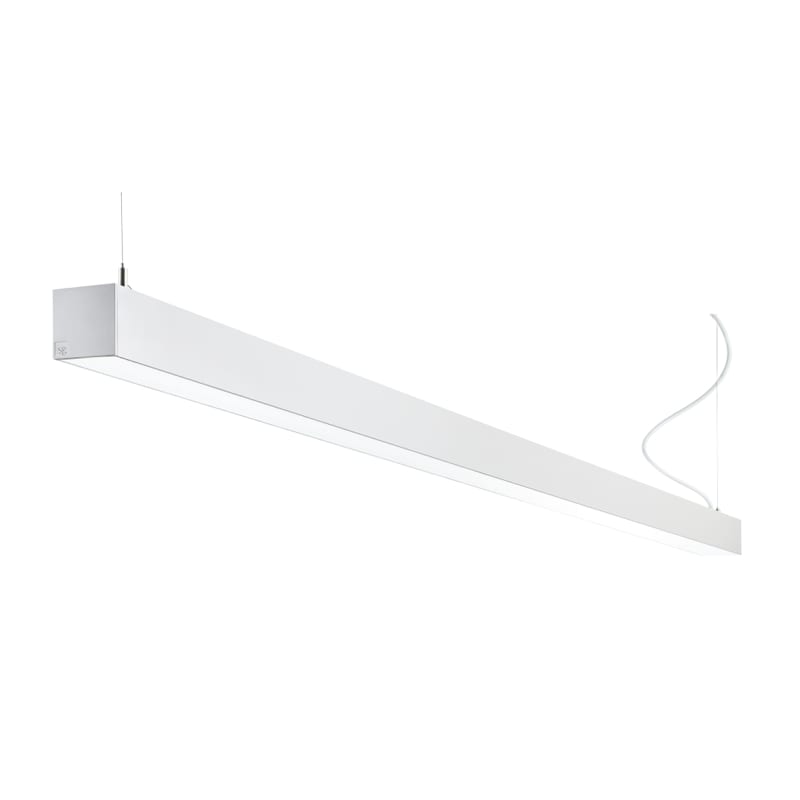

Lineal 80 1680 D/In White 3K

SG Armaturen 320992 LINEAL 80 1680 D/In WHITE 3000K RA>90 DALI 56W, 8100lm, SDCM3, IP20, L93/>50.000.

Manufacturer part number (MPN)

320992

EAN / GTIN

7021983209924

Sales unit

pcs

Package quantity

4 pcs

Efficacy

145 lm/W

Lumen

8100lm

IP Class

IP20

Colour temperature

3000K

Colour rendering (Ra)

Ra>90

Lifetime

50,000 L93/>

Mounting

Suspended, Indoor

System wattage

56W

Voltage

220-240V

Frequency (Hz)

50/60Hz

Max. luminaires per circuit breaker

B10: 8, B16: 13, C10: 14, C16: 22

Type of light source

LED

Luminous flux

8100lm

Programmable with CLO

Yes (affects lumen output)

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 40/60%

Optic

Opal prismatic

Visible flicker (PstLM)

0,04

Stroboscopic flicker (SVM)

0,03

Type

DALI-2

Driver

1550mA

Luminaire class

Class I

Contains light source of energy class

C

Housing

Aluminium

Module

1680

Wire set

2x2m wire kit w/ceiling bracket

Cable

Cable 5x0,75mm² 3,0m

Length (mm) L

1687

Width (mm) W

78

Height (mm) H

77

Weight (kg) gross/net

4.2 / 3.9

Packaging dimensions (mm)

1710 x 100 x 100

Operation by Bluetooth

No

Compatible with Casambi

No

With movement sensor

No

Suitable for light line configuration

Yes

Suitable for workplace according to EN 12464-1

No

Lamp type

LED exchangeable

With light source

Yes

Housing material

Aluminium

Housing colour

White

Type of grid

Matt

Type of control gear

Not required

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

Yes

Dimming DALI-2

Yes

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Impact strength

IK00

Protection class according to IEC 61140

I

Suitable for emergency lighting

Yes

Filament test according to IEC 60695-2-11

None

Max. system power

56 W

Colour of light

White

Colour rendering index CRI

90-100

Unified Glare Ratio (UGR)

12.4

Flickering value Pst LM

0.04

Stroboscope effect value SVM

0.03

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

78 mm

Height/depth

77 mm

Length

1687 mm

Type of wiring

Suitable for loop-through wiring

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021983209924
• SAP 1200985714
• Code 84311294
