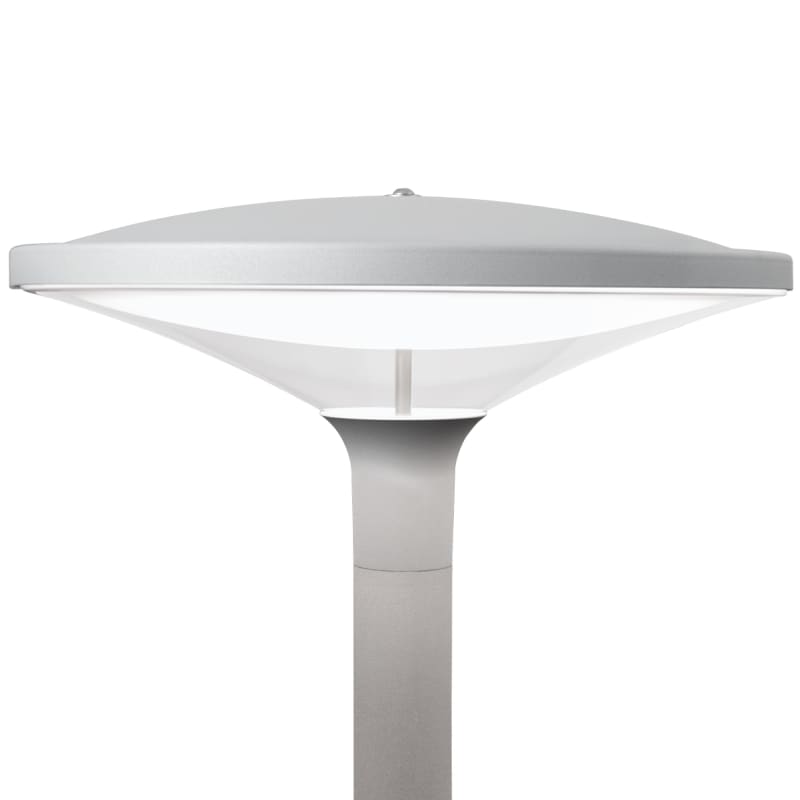

Place 28W/830 GREY Dynadim

SG Armaturen 8246088215 L70/B10>100 000 hours, 2510lm, 90 lm/W, SDCM3, IP66, IK10.

Manufacturer part number (MPN)

8246088215

EAN / GTIN

5703821168076

Sales unit

pcs

Power

28 W

Efficacy

115 lm/W

Lumen

2410lm

IP Class

IP66

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

50,000 L90/B10>

Mounting

Post - top (Ø60mm), Outdoor

System wattage

21W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 10, B16: 17, C10: 16, C16: 27

Type of light source

LED

Luminous flux

2410lm

MacAdams factor

SDCM: 3

Light distribution

Direct

Type

DYNADIM

Luminaire class

Class II

IK Class

IK10

Surge protection

Integrated (min. 4 kV)

Contains light source of energy class

C

Sunda Hus

C+

Housing

Die-cast aluminium

Colour

Grey (structure 2150 sablé)

Optics

Polycarbonat (PC)

Cable

Cable 2x1mm² 6m

Wind projected area

0,0775m² - Max 10 kg

Height (mm) H

291

Diameter (mm) D

600

Weight (kg) gross/net

9.8 / 7.8

Packaging dimensions (mm)

625 x 625 x 300

Mounting method

Post top

Protection class according to IEC 61140

II

Width

600 mm

Conductor cross section

1 mm²

Housing colour

Grey

Dimmable

No

Surface protection

Powder coating

Voltage type

AC

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

80-89

Cable length

5 m

Diameter

600 mm

Number of poles

3

Length

291 mm

Height/depth

291 mm

Housing material

Aluminium

Lamp type

LED not exchangeable

Material cover

Plastic, opal

Impact strength

IK10

Degree of protection (IP)

IP66

Built-in battery

No

Suitable for number of light sources

1

Max. system power

21 W

Rated luminous flux according to IEC 62722-2-1

2370 lm

Colour of light

White

Remote control

None

IFTTT support available

No

Type of wiring

Ending

Rated life time L90/B10 at 25 °C

50000 h

Colour consistency (McAdam ellipse)

SDCM3

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming Touch and Dim

No

Dimming with push-button

No

No dim function

No

Luminaire efficacy

115 lm/W

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Dimming DALI-2

No

Dimming D4i

No

Solar powered

No

With integrated PV panel

No

Suitable for off-grid power system

No

Power factor

100

Country of origin

Denmark

HS Code

9405.42

• EAN 5703821168076
• SAP 1200056169
• Code 81904694
