SG Armaturen

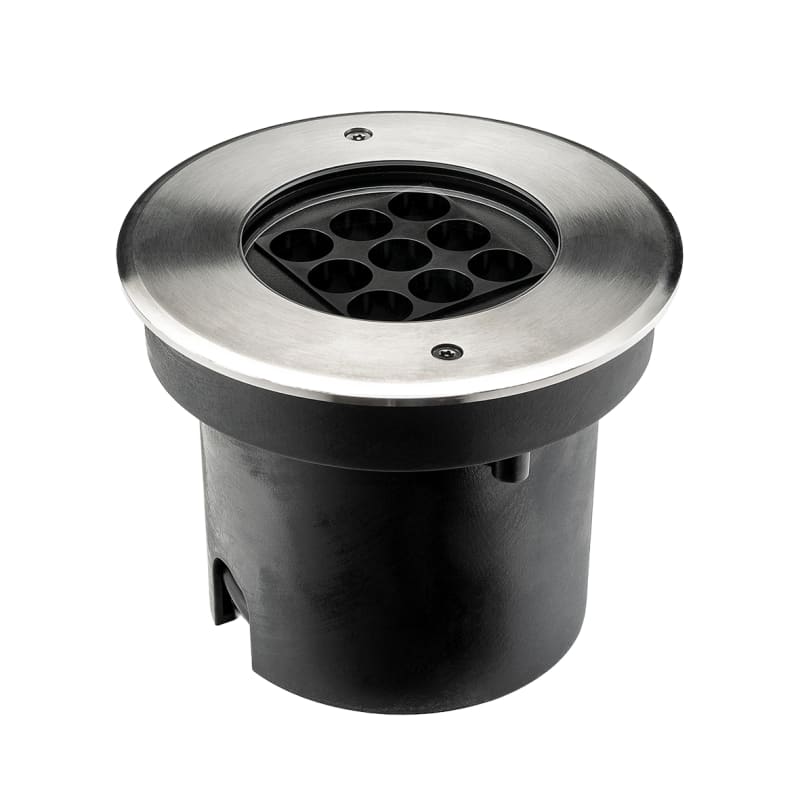

Nemo II MAXI 40D 3000K
Part number630120EAN / GTIN7021986301205HS code9405.42
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 630120 NEMO II MAXI 40D 3000K, 14 W, 800lm, Ra>80, SDCM:3, Class In, IP67, L80/B20> 50.000.
Technical Specifications
- Manufacturer part number (MPN)
- 630120
- EAN / GTIN
- 7021986301205
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Colour temperature
- 3000 K
- Efficacy
- 57 lm/W
- Lumen
- 800lm
- IP Class
- IP67
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 14W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 60, B16: 98, C10: 60, C16: 98
- Type of light source
- LED
- Luminous flux
- 800lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Lens
- Beam angle
- 40°
- Visible flicker (PstLM)
- 0
- Stroboscopic flicker (SVM)
- 0
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK10
- Contains light source of energy class
- E
- Housing
- Aluminium and stainless steel
- Optics
- Glass
- Cable
- Cable 1m
- Height (mm) H
- 115
- Diameter (mm) D
- 150
- Weight (kg) gross/net
- 1.995 / 1.895
- Packaging dimensions (mm)
- 160 x 160 x 125
- Protection class according to IEC 61140
- I
- Outer diameter
- 150 mm
- Lamp holder
- None
- Conductor cross section
- 1 mm²
- Housing colour
- Anthracite
- Dimmable
- Yes
- Voltage type
- AC
- Suitable for lamp power
- 14 W
- Type of control gear
- LED operating device voltage-controlled
- Adjustable
- No
- Colour rendering index CRI
- 80-89
- Built-in diameter
- 138 mm
- Number of poles
- 3
- Height/depth
- 115 mm
- Lamp type
- LED not exchangeable
- Electrical connection with connector system
- No
- Impact strength
- IK10
- Over rollable
- Yes
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP67
- With light source
- Yes
- Max. load
- 2000 kg
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Max. system power
- 14 W
- Colour of light
- White
- IFTTT support available
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- Luminaire efficacy
- 57 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Dimming DALI-2
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Compatible with Casambi
- No
- Rated luminous flux according to IEC 62722-2- 1
- 800 lm
- Built-in height/depth
- 112 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986301205
- SAP 1200950126
- Code 84238345
Product Documentation
Document preview: Nemo II MAXI 40D 3000K (630120) — Specification sheet
