SG Armaturen

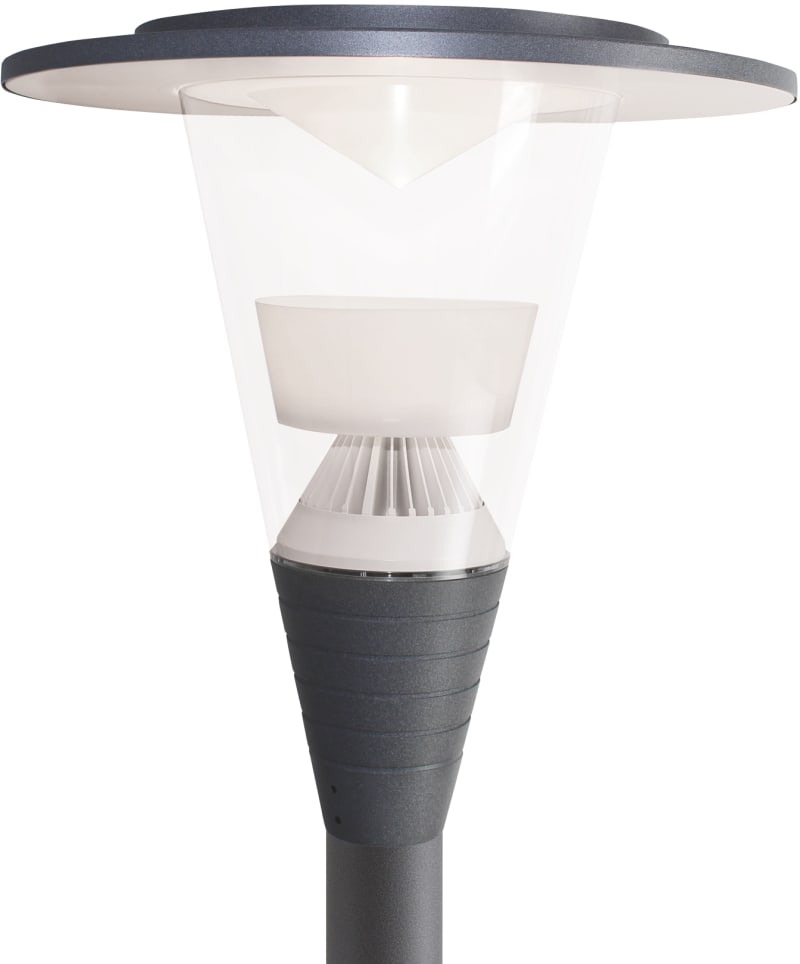

RAY 680 D/In CLEAR/OPAL 30W 3K
Part number8246079376EAN / GTIN5703821162463HS code8544.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246079376 Ray 680 D/In Clear/Opal 30W 3000K Ra>80 CD GRY/S/30 IP65 Cable 3x1mm² 5,0m Kl.In.
Technical Specifications
- Manufacturer part number (MPN)
- 8246079376
- EAN / GTIN
- 5703821162463
- HS code
- 8544.42
- Sales unit
- pcs
- Power
- 30 W
- Replaces
- 8246079363
- Efficacy
- 125 lm/W
- Lumen
- 2990lm
- IP Class
- IP65
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Post - top (Ø60mm), Outdoor
- System wattage
- 24W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Leakage current (mA)
- 0.31
- Type of light source
- LED
- Luminous flux
- 2990lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct/Indirect 85/15%
- Optic
- Opal
- UGR
- UGR<19
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK10
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- D
- Housing
- Die-cast aluminium
- Colour
- Grey SIZE S/30
- Optics
- Polycarbonat (PC)
- Cable
- Cable 3x1mm² 5,0m
- Wind projected area
- 0,1830m² - Max 8 kg
- Height (mm) H
- 703
- Diameter (mm) D
- 680
- Weight (kg) gross/net
- 12.4 / 12.2
- Packaging dimensions (mm)
- 710 x 710 x 790
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5703821162463
- SAP 1200056104
- Code 81904638
Product Documentation
Document preview: RAY 680 D/In CLEAR/OPAL 30W 3K (8246079376) — Specification sheet
More from SG Armaturen
SG Armaturen

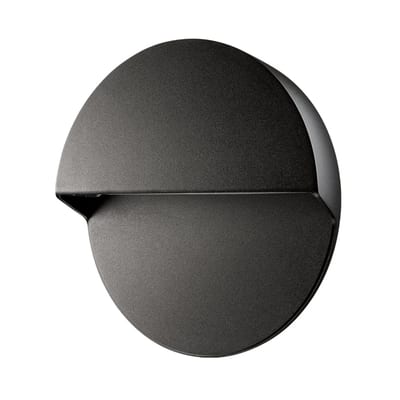

Arlon Round Black 3000K DALI
653609
SG Armaturen

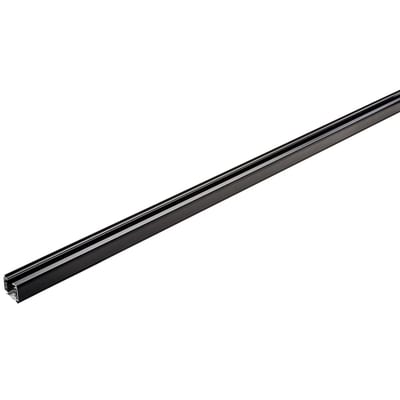

Shopline 3T DALI RAIL 3M Black
312504
SG Armaturen

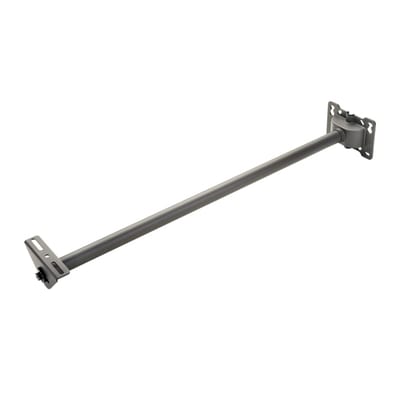

FLOM SIGN ARM Graphite
630090
SG Armaturen

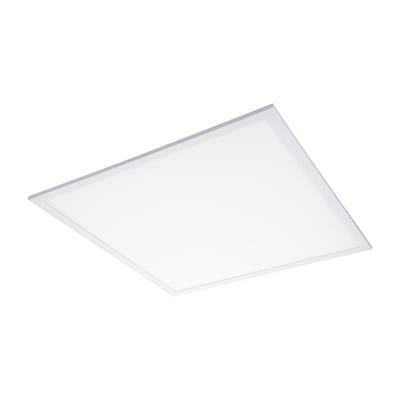

Sense PRO X 600X600 White 4000K DALI
212661
SG Armaturen

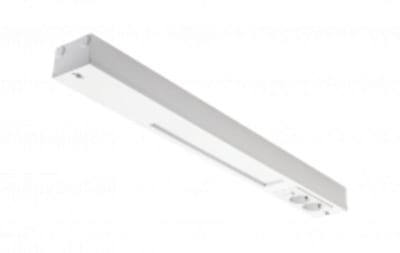

Namsen 1200 26W/830 M/2XPLUG DALI
112032
SG Armaturen

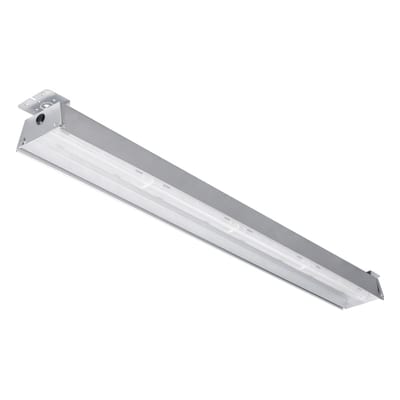

Arena ECO 1200 WIDE 7000LM 47W/830
607032
SG Armaturen

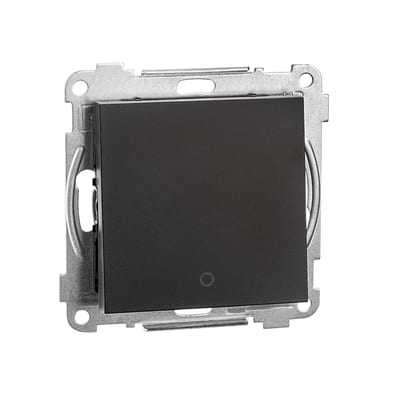

Switch IF 2-Pole S Black
76013
SG Armaturen

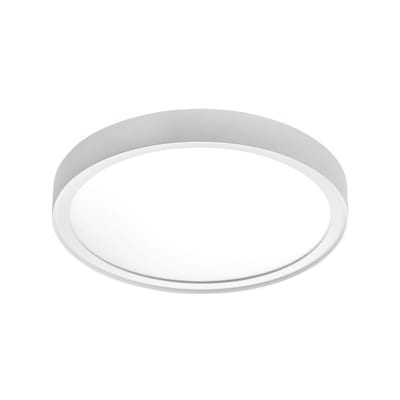

DISC 360 White 21W/830 Sensor DIM
