SG Armaturen

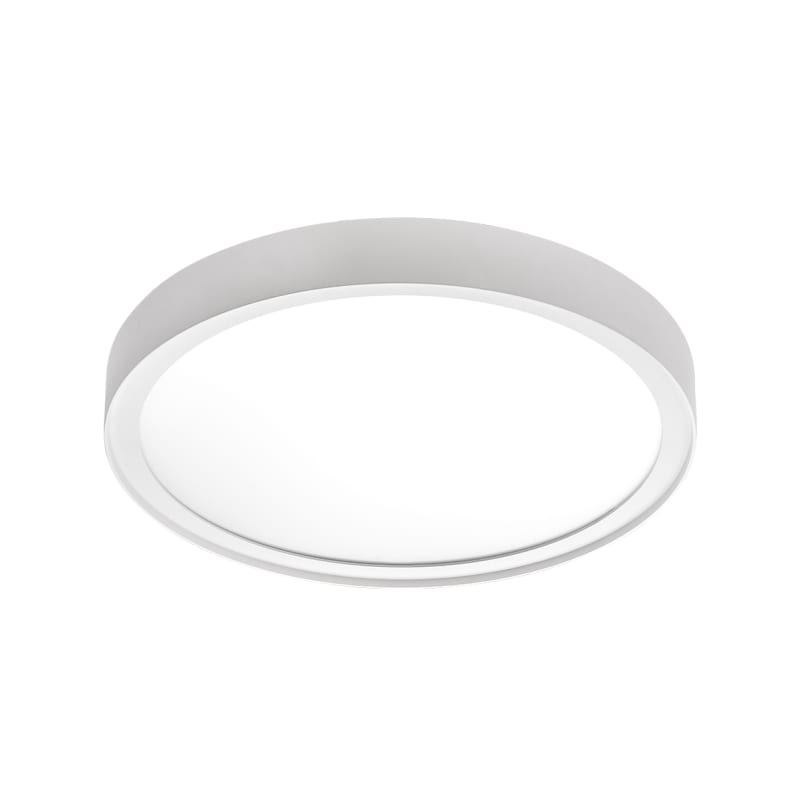

DISC 360 White 21W/830 Sensor DIM
Part number606223EAN / GTIN7021986062236HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606223 DISC 360 WHITE 3000K SENSOR DIM, 21W, 2610lm, Ra>80, SDCM3, L80/B20 100.000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606223
- EAN / GTIN
- 7021986062236
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 21 W
- Efficacy
- 124 lm/W
- Lumen
- 2610lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 21W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 2610lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,09
- Stroboscopic flicker (SVM)
- 0,05
- Type
- Sensor Dim
- Sensor type
- Pure motion sensor, independent of lux level
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 57
- Diameter (mm) D
- 360
- Weight (kg) gross/net
- 2.7 / 2.5
- Packaging dimensions (mm)
- 375 x 380 x 60
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986062236
- SAP 1200854469
- Code 84075262
Product Documentation
Document preview: DISC 360 White 21W/830 Sensor DIM (606223) — Specification sheet
