SG Armaturen
Tysnes 66 1200 35W/830
Part number120064EAN / GTIN7021981200640HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

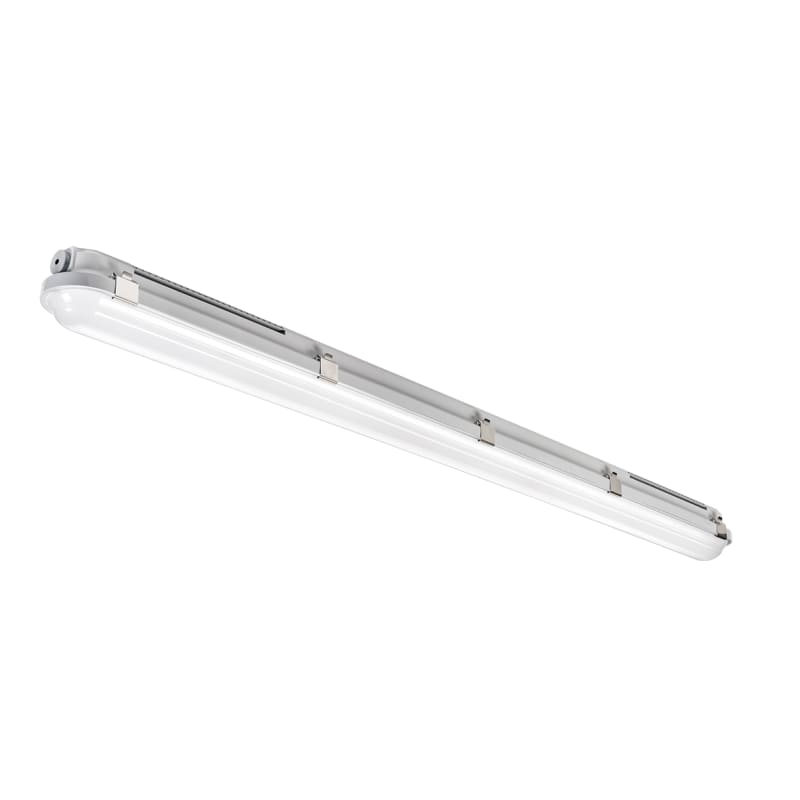

SG Armaturen 120064 TYSNES 66 1200 3000K, 35W, Ra>80, SDCM 3, L80/B20 100000, IP66, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 120064
- EAN / GTIN
- 7021981200640
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 35 W
- Efficacy
- 157 lm/W
- Lumen
- 5480lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 35W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 14, B16: 23, C10: 22, C16: 36
- Type of light source
- LED
- Luminous flux
- 5480lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 117°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Housing
- UV-stabilized polycarbonate
- Colour
- Grey
- Optics
- UV-stabilized polycarbonate
- Module
- 1200
- Connection
- 3-pole screwless terminal block with 3x2,5mm² through wiring
- Length (mm) L
- 1200
- Width (mm) W
- 85
- Height (mm) H
- 80
- Weight (kg) gross/net
- 1.65 / 1.5
- Packaging dimensions (mm)
- 1225 x 85 x 90
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200640
- SAP 1200881423
- Code 84119706
Product Documentation
Document preview: Tysnes 66 1200 35W/830 (120064) — Specification sheet
