SG Armaturen

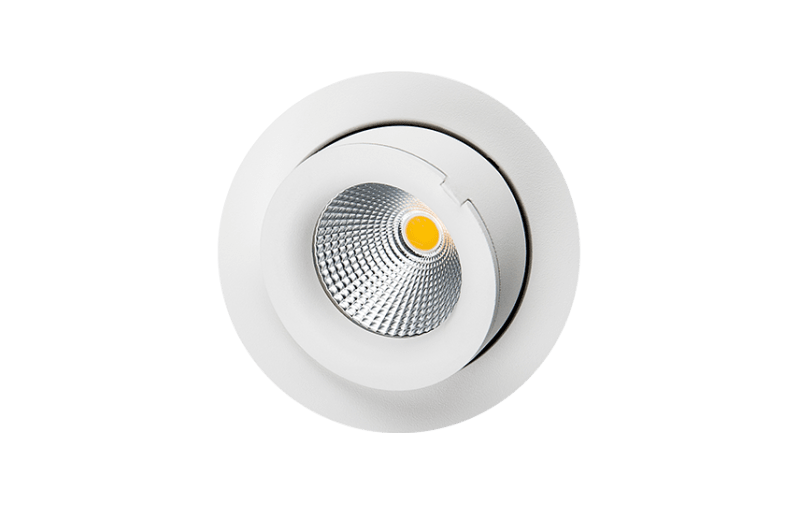

Junistar Exclusive IN/OUT White 9W/927
Part number903201EAN / GTIN7021989032014HS code8543.70
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 903201 Low-profile downlight. With a recessed lamp for reduced glare.
Technical Specifications
- Manufacturer part number (MPN)
- 903201
- EAN / GTIN
- 7021989032014
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 9 W
- Efficacy
- 66 lm/W
- Lumen
- 730lm
- Wattage
- 11W
- IP Class
- IP44/IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 11W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 730lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<25
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Length (mm) L
- 121
- Width (mm) W
- 94
- Height (mm) H
- 55
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 53
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.672 / 0.5
- Packaging dimensions (mm)
- 130 x 115 x 95
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021989032014
- SAP 1000801073
- Code 81456284
Product Documentation
Document preview: Junistar Exclusive IN/OUT White 9W/927 (903201) — Specification sheet
