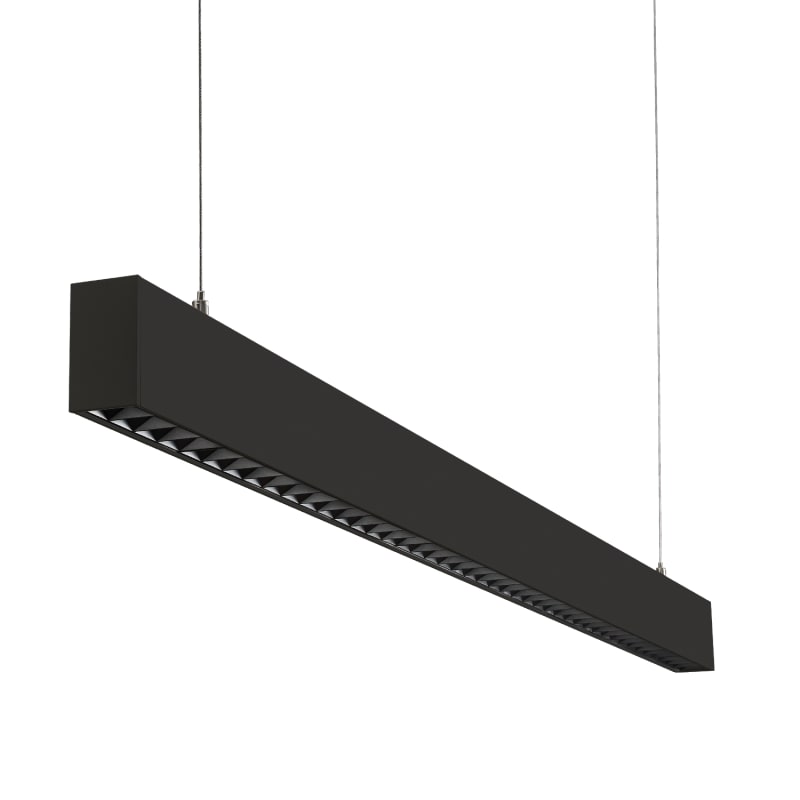

Inspire 1200 Black 32W/927

SG Armaturen 212876 INSPIRE BLACK 2700K.

Manufacturer part number (MPN)

212876

EAN / GTIN

7021982128769

Sales unit

pcs

Package quantity

4 pcs

Power

32 W

Efficacy

108 lm/W

Lumen

3470lm

IP Class

IP20

Colour temperature

2700K

Colour rendering (Ra)

Ra>90

Lifetime

100,000 L80/B20>

Mounting

Suspended, Indoor

System wattage

32W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 19, B16: 30, C10: 31, C16: 51

Leakage current (mA)

0.11

Type of light source

LED

Luminous flux

3470lm

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 50/50%

Optic

Cubic Optic Black

UGR

UGR<16

Visible flicker (PstLM)

0,08

Stroboscopic flicker (SVM)

0,05

Photobiological safety

RG 1

Type

Trailing edge

Luminaire class

Class I

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Aluminium

Colour

Black (RAL 9004)

Optics

Polycarbonat (PC)

Wire set

2x2m wire kit

Cable

Cable 3x0,75mm² 2,5m

Length (mm) L

1241

Width (mm) W

38

Height (mm) H

67

Weight (kg) gross/net

3.1 / 2.5

Packaging dimensions (mm)

1365 x 90 x 61

Operation by Bluetooth

No

With movement sensor

No

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

Black

Material cover

Plastic, transparent

Type of grid

None

Voltage type

AC

Nominal voltage

220–240 V

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

Yes

Dimming phase cut-on (leading edge)

No

Dimming Its Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Suitable for emergency lighting

No

Emergency power supply integrated

No

Filament test according to IEC 60695-2-11

None

Suitable for lamp power

32 W

Max. system power

32 W

Rated luminous flux according to IEC 62722-2-1

3470 lm

Colour of light

White

Luminaire efficacy

108 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

14.1

Power factor

100

Flickering value Pst LM

0.08

Stroboscope effect value SVM

0.05

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

38 mm

Height/depth

67 mm

Length

1241 mm

With suspension

Yes

Type of wiring

Ending

Number of poles

1

Conductor cross section

0.75 mm²

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021982128769
• SAP 1200789281
• Code 83957738
