SG Armaturen

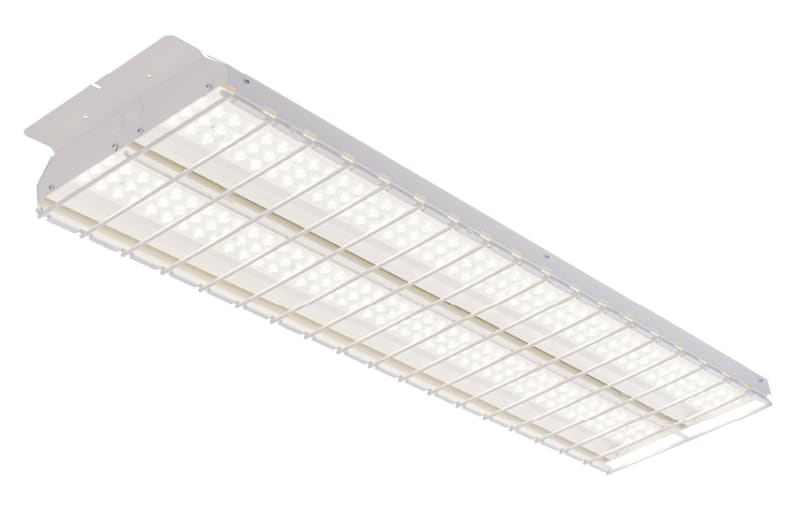

Arena 1200 Sport 156W/840 Medium
Part number8246094306EAN / GTIN5703821177207HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094306 ARENA SPORT 1200 23200lm 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094306 EAN / GTIN: 5703821177207 Sales unit: pcs Power: 156 W Efficacy: 142 lm/W Lumen: 22190lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 156W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 5, B16: 8, C10: 8, C16: 13 Leakage current (mA): 0.62 Type of light source: LED Luminous flux: 22190lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Medium Beam angle: Medium UGR: UGR<22 Photobiological safety: RG 1 Type: On/Off Luminaire class: Class I IK Class: IK10 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1200 296mm Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1263 Width (mm) W: 296 Height (mm) H: 80 Weight (kg) gross/net: 10.2 / 10 Packaging dimensions (mm): 1270 x 314 x 85 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821177207
- SAP 1200136360
- Code 81997016
Product Documentation
Document preview: Arena 1200 Sport 156W/840 Medium (8246094306) — Specification sheet
