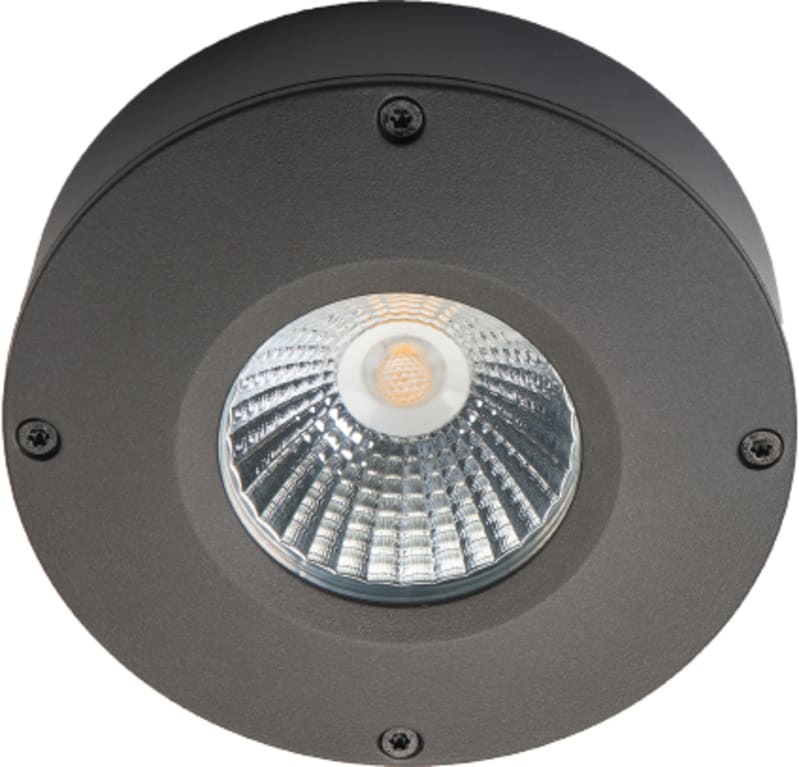

SG Armaturen Callisto 923012 Graphite 4 W 2700K IP65 Downlight
Pricing
Request a quote
We reply within 24 hours
Product Description
Low-profile IP65 surface-mounted LED downlight with a graphite aluminium housing, tempered-glass optic and 65 degree beam angle. Delivers 190 lm at 4 W (63 lm/W) in a 2700 K warm-white colour with Ra above 80, running from 220-240 V through an integrated screwless terminal block. Class II IK06 construction rated for indoor and outdoor use with an L70/B50 lifetime above 50,000 hours.
Technical Specifications
- Manufacturer part number (MPN)
- 923012
- EAN / GTIN
- 7021989230120
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 20 pcs
- IP rating
- IP65
- Power
- 4 W
- Efficacy
- 63 lm/W
- Lumen
- 190lm
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 3W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 115, B16: 184, C10: 134, C16: 215
- Type of light source
- LED
- Luminous flux
- 190lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Glass Clear
- Beam angle
- 65°
- UGR
- UGR<22
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK06
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Height (mm) H
- 33
- Diameter (mm) D
- 110
- Weight (kg) gross/net
- 0.324 / 0.27
- Packaging dimensions (mm)
- 120 x 115 x 45
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021989230120
- SAP 1200005595
- Code 8499690
Product Documentation
