SG Armaturen

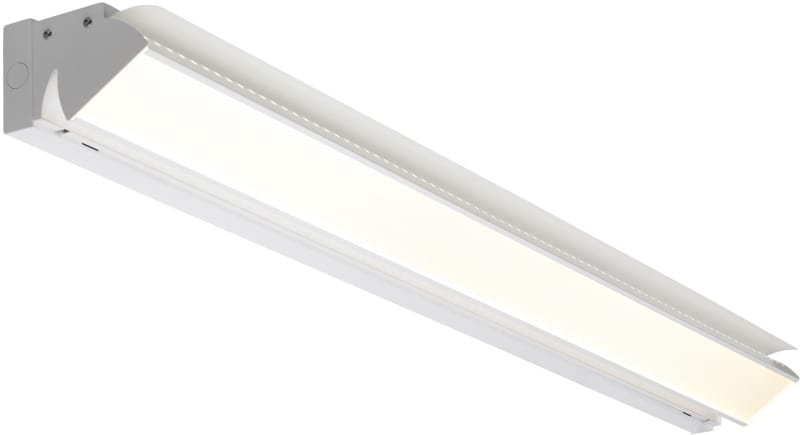

Linus D/In 17W/840 DALI
Part number8246078788EAN / GTIN5703821162708HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246078788 L80/B10>50 000 hours, 1900lm, 112 lm/W, SDCM:3, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 8246078788 EAN / GTIN: 5703821162708 Sales unit: pcs Power: 17 W Efficacy: 135 lm/W Lumen: 1890lm IP Class: IP20 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 70,000 L90/B10> Mounting: Surface, Indoor System wattage: 14W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 13, B16: 20, C10: 21, C16: 34 Leakage current (mA): 0,07 Type of light source: LED Light source included: Yes Luminous flux: 1890lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct/Indirect 97/3% Optic: Lens C, prismatic Conical Visible flicker (PstLM): 0,16 Stroboscopic flicker (SVM): 0 Type: DALI-2 / Push Dim Luminaire class: Class I Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Sunda Hus: B Housing: Sheet steel Colour: White (Pure white, 25% gloss) Optics: Acrylic (PMMA) Connection: Screwless terminal block Length (mm) L: 1170 Width (mm) W: 123 Height (mm) H: 90 Weight (kg) gross/net: 4.3 / 4.1 Packaging dimensions (mm): 1260 x 160 x 100 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821162708
- SAP 1200055948
- Code 81905036
Product Documentation
Document preview: Linus D/In 17W/840 DALI (8246078788) — Specification sheet
