SG Armaturen

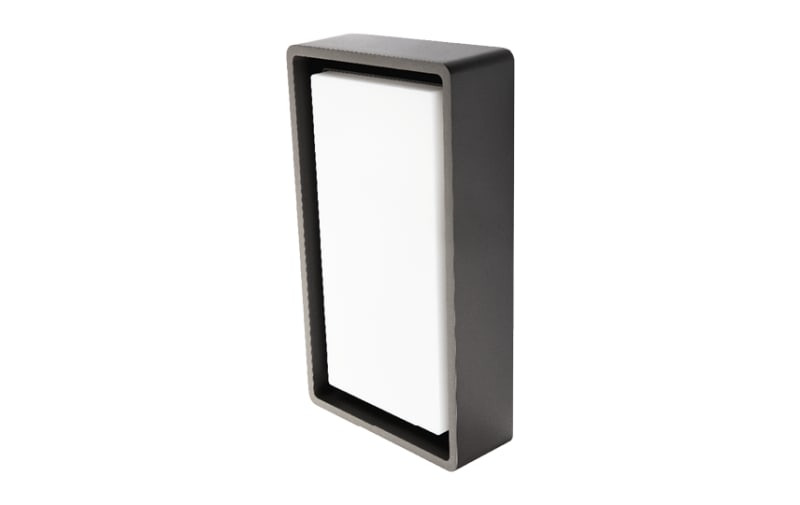

Frame Graphite 8W/840
Part number605591EAN / GTIN7021986055917HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605591 Frame graphite LED 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 605591
- EAN / GTIN
- 7021986055917
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 8 W
- Efficacy
- 95 lm/W
- Lumen
- 730lm
- Wattage
- 8W
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7.7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 77, B16: 123, C10: 77, C16: 123
- Type of light source
- LED
- Luminous flux
- 730lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 320
- Width (mm) W
- 180
- Height (mm) H
- 77
- Weight (kg) gross/net
- 2.47 / 1.9
- Packaging dimensions (mm)
- 328 x 188 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986055917
- SAP 1200369612
- Code 82376259
Product Documentation
Document preview: Frame Graphite 8W/840 (605591) — Specification sheet
More from SG Armaturen
SG Armaturen
UNO Graphite 1100 10W/840
643642
SG Armaturen
Sense 495 DALI OPAL Prism 31W/840
212297
SG Armaturen
Lineal S 1120 Black 29W/830 DALI
8246094623
SG Armaturen
Inspire R 150 White 8W/930
212417
SG Armaturen
Lineal S 840 Black 21W/830 DALI
8246094607
SG Armaturen
Inspire S 300 White 15W/927 DALI
320832
SG Armaturen

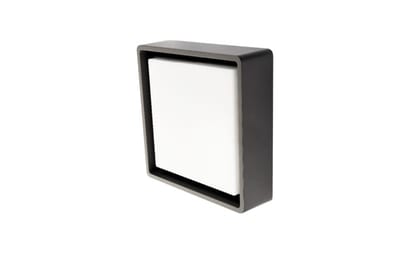

Frame SQ Graphite 7W/840
605291
SG Armaturen

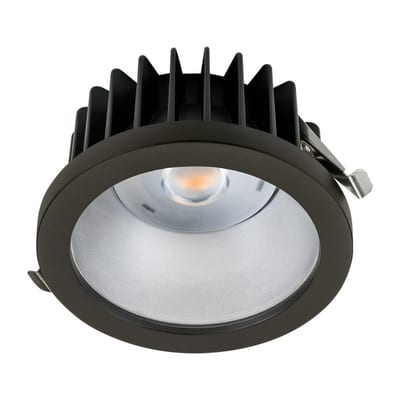

RAX SOFT 150 Black 4000LM 34W/830 IP65
