SG Armaturen

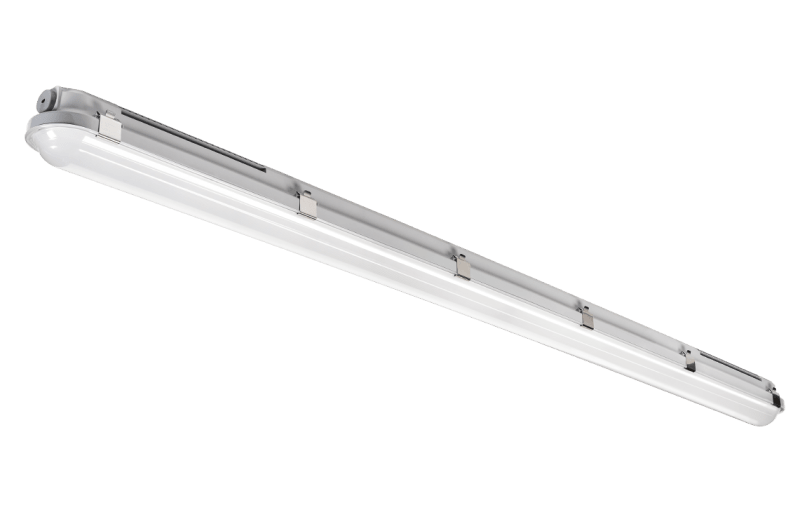

TYSNES66 1500 40W/840 Emergency Lighting
Part number120034EAN / GTIN7021981200343HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120034 TYSNES66 1500 4000K EMG, 40W, 6400lm, Ra>80, SDCM3, L80/B20>100.000, IP66, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 120034 EAN / GTIN: 7021981200343 Sales unit: pcs Package quantity: 8 pcs Power: 40 W Efficacy: 160 lm/W Lumen: 6400lm IP Class: IP66 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 40W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36 Type of light source: LED Luminous flux: 6400lm Emergency lumen: 790lm MacAdams factor: SDCM: 3 minimum ambient temperature: 0°C Light distribution: Direct Optic: Opal Beam angle: 117° UGR: UGR<25 Type: Emergency 3 hours Not dimmable Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 1500 Connection: Screwless terminal block Length (mm) L: 1500 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 2 / 1.8 Packaging dimensions (mm): 1525 x 85 x 90 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200343
- SAP 1200685164
- Code 83342501
Product Documentation
Document preview: TYSNES66 1500 40W/840 Emergency Lighting (120034) — Specification sheet
More from SG Armaturen
SG Armaturen
Arena ECO Connect 1500 WIDE 76W/840
607026
SG Armaturen
TUBE WALL White USB 8W/930 DIM
320801
SG Armaturen
Slimline PRO Black 570mm 6,5W/930
391273
SG Armaturen
Sense 300X1200 Opal prismatic TW
212316
SG Armaturen

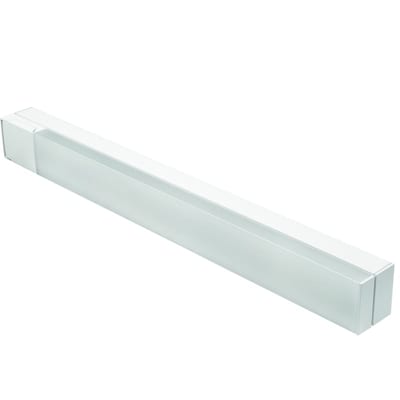

Prelude SQ White 16W/930 IP44 Socket DALI
111382
SG Armaturen
Jointim Smart PILL 3.0 200VA M/K.BOX
820805
SG Armaturen

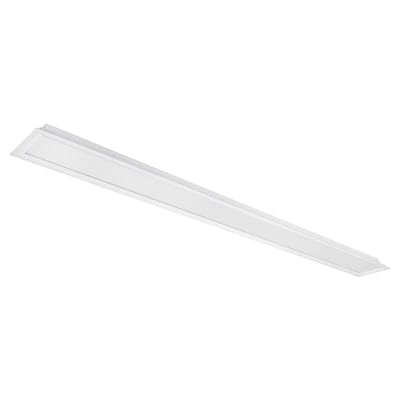

Sense LINE 120X1200 18W/830 Linect
