SG Armaturen

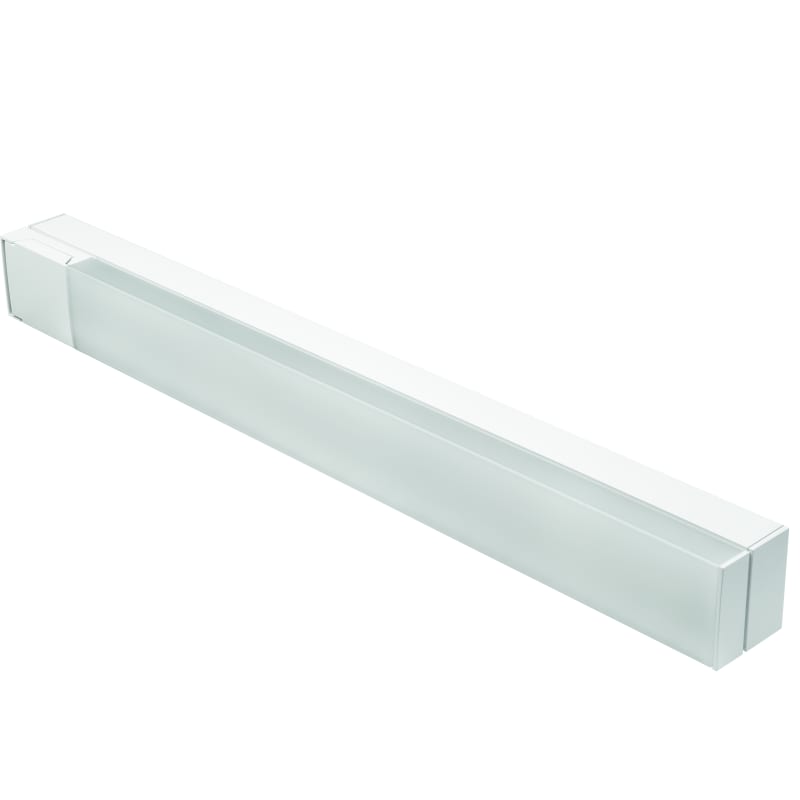

Prelude SQ White 16W/930 IP44 Socket DALI
Part number111382EAN / GTIN7021981113827HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 111382 L80/B10>60 000 hours, 1490lm, 93 lm/W, SDCM3, IP44 (horizontal) IP20 (vertical), IK05, phase-cut dim.
Technical Specifications
- Manufacturer part number (MPN)
- 111382
- EAN / GTIN
- 7021981113827
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP44
- Power
- 16 W
- Efficacy
- 125 lm/W
- Lumen
- 1620lm
- IP Class
- IP44 (mounted horizontally) / IP40 (mounted vertically)
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
- System wattage
- 13W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 43, C16: 69
- Type of light source
- LED
- Luminous flux
- 1620lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Acrylic diffuser
- UGR
- UGR<28
- Type
- DALI-2
- Luminaire class
- Class I
- IK Class
- IK05
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Width (mm) W
- 590
- Height (mm) H
- 59
- Depth (D)
- 62
- Weight (kg) gross/net
- 1.085 / 0.969
- Packaging dimensions (mm)
- 596 x 65 x 65
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021981113827
- SAP 1200457309
- Code 82528456
Product Documentation
Document preview: Prelude SQ White 16W/930 IP44 Socket DALI (111382) — Specification sheet
More from SG Armaturen
SG Armaturen
Jointim Smart PILL 3.0 200VA M/K.BOX
820805
SG Armaturen
Sense LINE 120X1200 18W/830 Linect
212694
SG Armaturen
Junistar TUBE Square White 2700K
902724
SG Armaturen

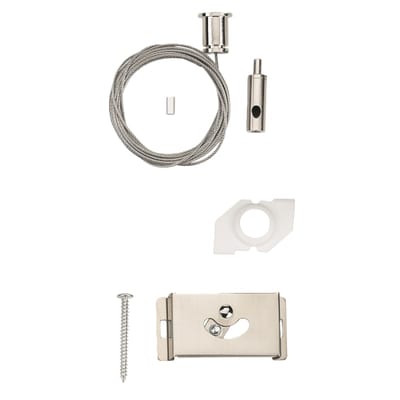

Lineal 80 Wireset 1X2M
320962
SG Armaturen

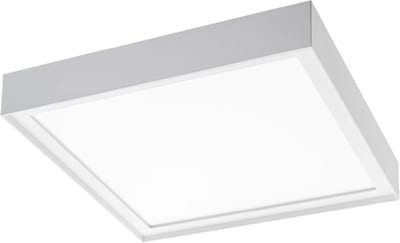

DISC 285X285 White 22W/830
606053
SG Armaturen

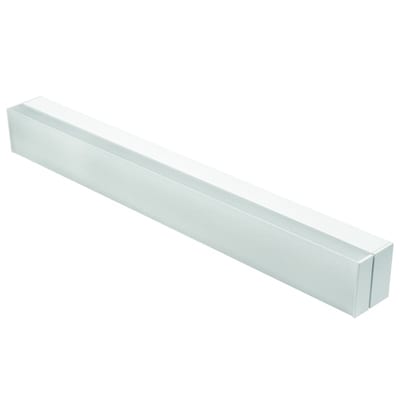

Prelude SQ White 16W/930 IP44 DALI
111381
SG Armaturen

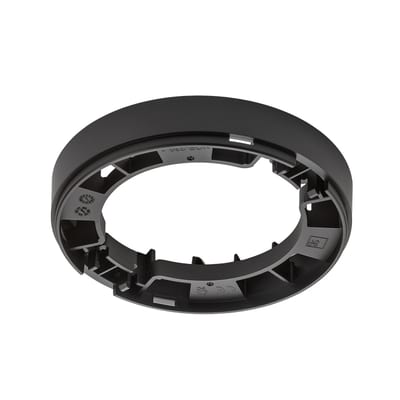

DCL Ceiling Extension ring Black
