SG Armaturen

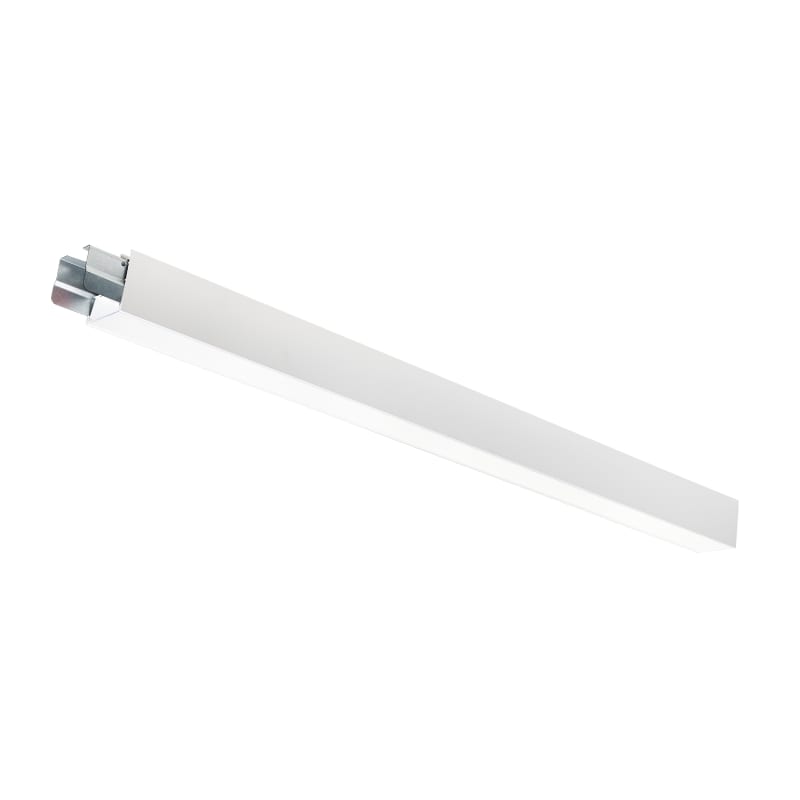

Lineal 80 1120 D White 13W/2CCT DALI
Part number320938EAN / GTIN7021983209382HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320938 LINEAL 80 1120 D WHITE 3000K/4000K DALI, 13W, 1710/1790lm, Ra>80, SDCM, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 320938
- EAN / GTIN
- 7021983209382
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 13 W
- Efficacy
- 132/138 lm/W
- Lumen
- 1710/1790lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended or surface, Indoor
- System wattage
- 13W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Leakage current (mA)
- 0,08
- Type of light source
- LED
- Luminous flux
- 1710/1790lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0,05
- Stroboscopic flicker (SVM)
- 0
- Photobiological safety
- RG 0
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Housing
- Aluminium
- Module
- 1120
- Wire set
- 1x2m wire kit w/ceiling bracket
- Connection
- 2+3 -pole with 5x1,5mm² through wiring
- Length (mm) L
- 1120
- Width (mm) W
- 78
- Height (mm) H
- 78
- Weight (kg) gross/net
- 3.1 / 2.8
- Packaging dimensions (mm)
- 1190 x 100 x 100
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983209382
- SAP 1200912144
- Code 84185018
Product Documentation
Document preview: Lineal 80 1120 D White 13W/2CCT DALI (320938) — Specification sheet
