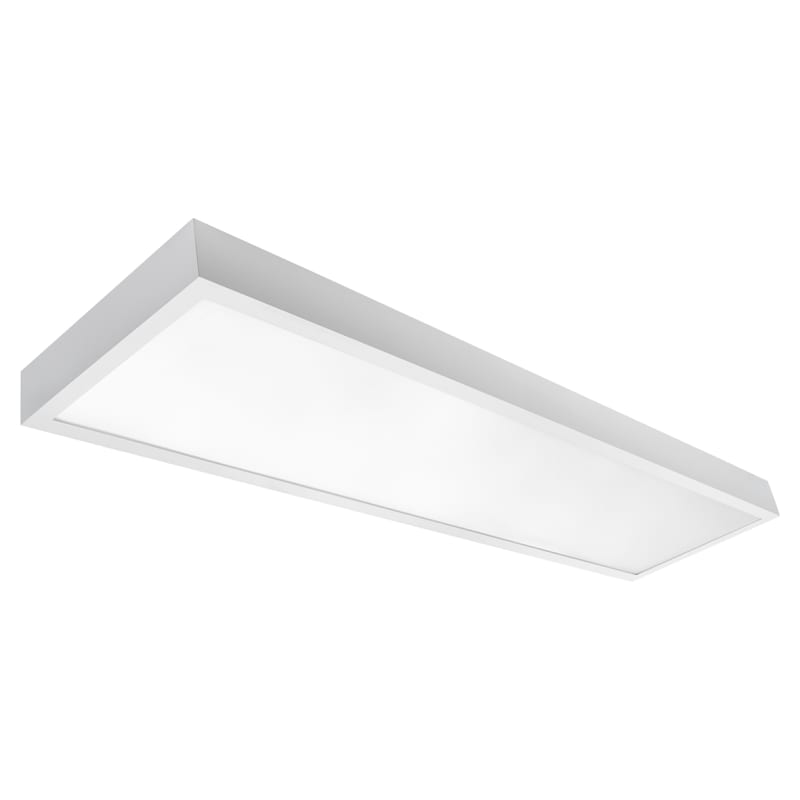

Sense Basic Surface 300X1200 32W DALI
Part number212704EAN / GTIN7021982127045HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212704 SENSE BASIC SURFACE 300X1200 WHITE 3/4K DALI, 32W, 4290/4510lm, Ra>80, SDCM3, IK06, L80/B20 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212704
- EAN / GTIN
- 7021982127045
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 32 W
- Efficacy
- 134 lm/W
- Lumen
- 4290/4510lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Indoor
- System wattage
- 32W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 4290/4510lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Type
- DALI-2
- Driver
- 850mA
- Luminaire class
- Class II SELV
- IK Class
- IK06
- Contains light source of energy class
- C
- Housing
- Aluminium
- Optics
- Acrylic (PMMA)
- Module
- 300x1200
- Connection
- 5 pol Screwless terminal block
- Length (mm) L
- 1202
- Width (mm) W
- 301
- Height (mm) H
- 66
- Weight (kg) gross/net
- 6.5 / 5.95
- Packaging dimensions (mm)
- 1230 x 330 x 87
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982127045
- SAP 1200950174
- Code 84238358
Product Documentation
Document preview: Sense Basic Surface 300X1200 32W DALI (212704) — Specification sheet
