SG Armaturen

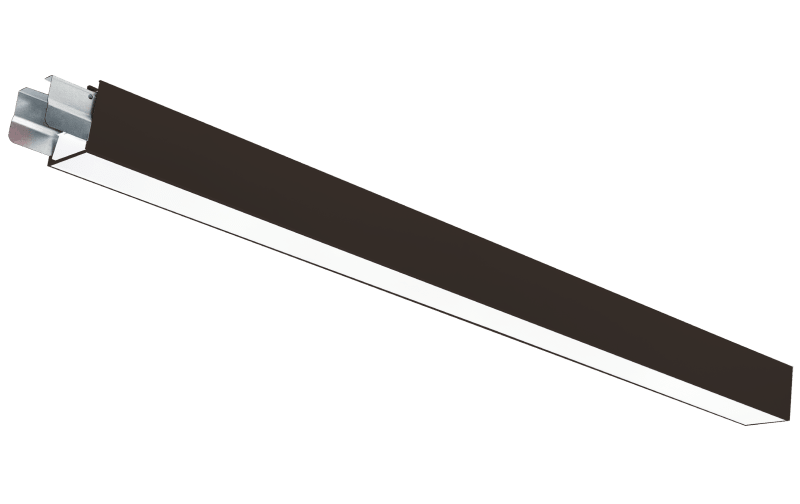

Lineal 80 1400 D Black 16W/2CCT DALI
Part number320936EAN / GTIN7021983209368HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320936 LINEAL 80 1400 D BLACK 3000K/4000K DALI, 16W, 2110/2150lm, Ra>80, SDCM3, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 320936
- EAN / GTIN
- 7021983209368
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 16 W
- Efficacy
- 132/134 lm/W
- Lumen
- 2110/2150lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended or surface, Indoor
- System wattage
- 16W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Leakage current (mA)
- 0,08
- Type of light source
- LED
- Luminous flux
- 2110/2150lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0,04
- Stroboscopic flicker (SVM)
- 0
- Photobiological safety
- RG 0
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Housing
- Aluminium
- Module
- 1400
- Wire set
- 1x2m wire kit w/ceiling bracket
- Connection
- 2+3 -pole with 5x1,5mm² through wiring
- Length (mm) L
- 1400
- Width (mm) W
- 78
- Height (mm) H
- 78
- Weight (kg) gross/net
- 3.6 / 3.25
- Packaging dimensions (mm)
- 1470 x 100 x 100
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983209368
- SAP 1200912142
- Code 84179087
Product Documentation
Document preview: Lineal 80 1400 D Black 16W/2CCT DALI (320936) — Specification sheet
