SG Armaturen

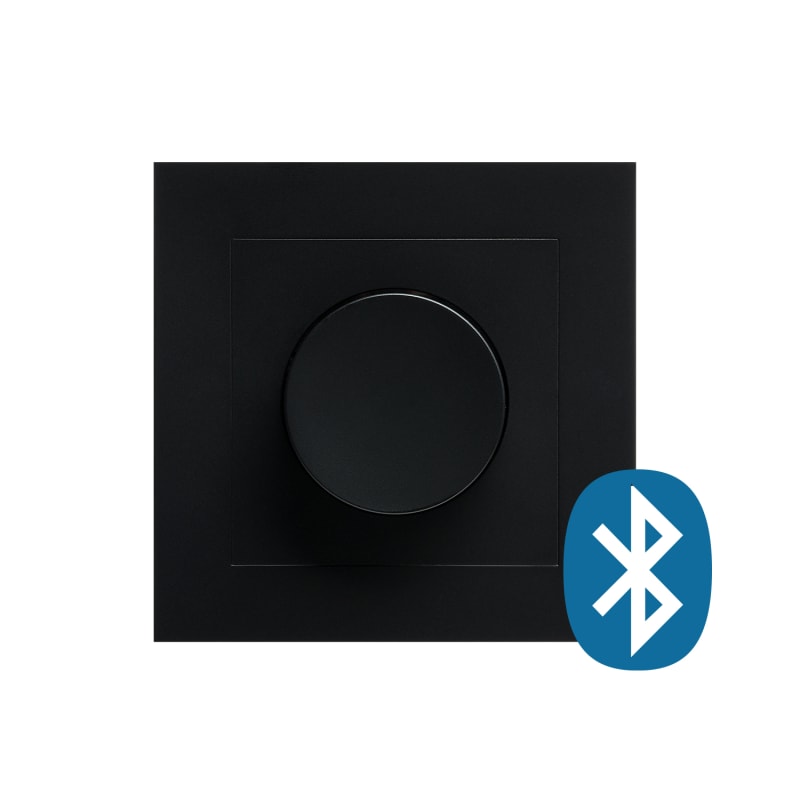

Jointim Smart 3.0 2-Pole Black
Part number820803EAN / GTIN7021988208038HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820803 LEDDIM 3.0 2-POLE BLACK.
Technical Specifications
- Manufacturer part number (MPN)
- 820803
- EAN / GTIN
- 7021988208038
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Number of poles
- 2P
- Wattage
- 400VA
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Function
- Integrated time control and astronomical clock
- Standby power
- <0.5W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Overvoltage protection
- Yes
- Overload protection
- Yes
- Minimum dim level is adjustable
- Yes
- Type
- SG Smart/ Trailing edge / On-Off
- Luminaire class
- Class II
- Housing
- Polycarbonat (PC)
- Colour
- Black (RAL 9004)
- Module
- 2-pole
- Connection
- Screw terminal 0.5 - 2.5 mm²
- Length (mm) L
- 84
- Width (mm) W
- 84
- Height (mm) H
- 48
- Weight (kg) gross/net
- 0.149 / 0.105
- Packaging dimensions (mm)
- 90 x 90 x 55
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Method of operation
- Turn/push button
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.5 W
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9004
- Serial dimmer
- Yes
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal voltage
- 220–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 48 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 29 mm
- App control via Bluetooth
- Yes
- Nominal power resistive load
- 400 W
- Nominal power capacitive load
- 400 VA
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Max. switching power LED
- 320 W
- Min. brightness controllable
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988208038
- SAP 1201008584
- Code 84361945
Product Documentation
Document preview: Jointim Smart 3.0 2-Pole Black (820803) — Specification sheet
