SG Armaturen

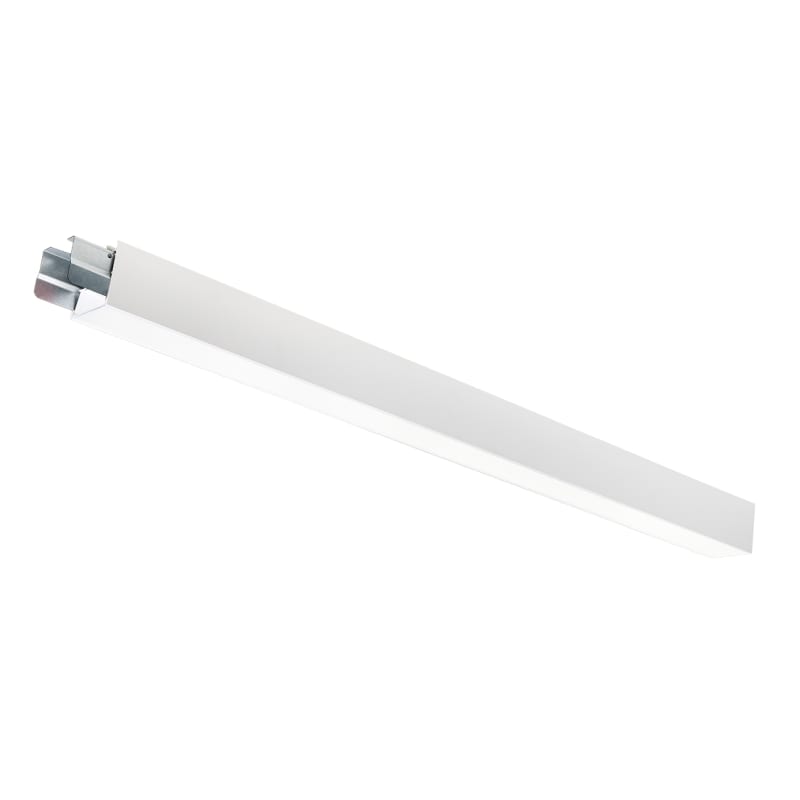

Lineal 80 1400 D/In White 32W/2CCT DALI
Part number320925EAN / GTIN7021983209252HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320925 LINEAL 80 1400 D/In WHITE 3000K/4000K DALI, 32W, 4970/5180lm, Ra>80, SDCM3, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 320925
- EAN / GTIN
- 7021983209252
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 32 W
- Efficacy
- 155/162 lm/W
- Lumen
- 4970/5180lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 32W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Leakage current (mA)
- 0,08
- Type of light source
- LED
- Luminous flux
- 4970/5180lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 40/60%
- UGR
- UGR<16
- Visible flicker (PstLM)
- 0,02
- Stroboscopic flicker (SVM)
- 0
- Photobiological safety
- RG 0
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Housing
- Aluminium
- Module
- 1400
- Wire set
- 1x2m wire kit w/ceiling bracket
- Connection
- 2+3 -pole with 5x1,5mm² through wiring
- Length (mm) L
- 1400
- Width (mm) W
- 78
- Height (mm) H
- 78
- Weight (kg) gross/net
- 3.95 / 3.6
- Packaging dimensions (mm)
- 1470 x 100 x 100
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983209252
- SAP 1200912139
- Code 84185840
Product Documentation
Document preview: Lineal 80 1400 D/In White 32W/2CCT DALI (320925) — Specification sheet
More from SG Armaturen
SG Armaturen
Slimline PRO Black 170mm 1,9W/927
391276
SG Armaturen
Stripline Diffuser SLIM/SOFT OPAL 1,8M
391469
SG Armaturen
CUBE Black 6W D2W (906213)
SG Armaturen
Artes MIDI Graphite 32W/827 IP65
641712
SG Armaturen
Lineal 80 Start KIT Black DALI
320940
SG Armaturen
Duett White 10W/827 IP65
611393
SG Armaturen

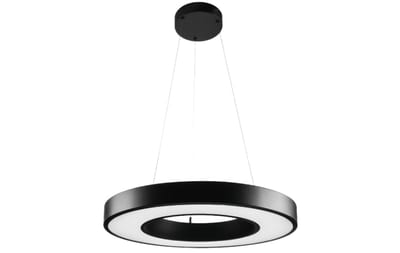

Circulus MAXI Pendant Black 30W/830
214022
SG Armaturen

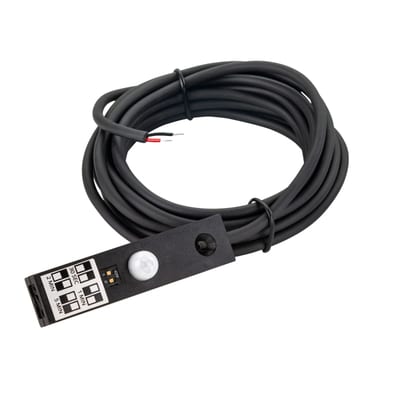

Slimline PIR Black (391291)
