SG Armaturen

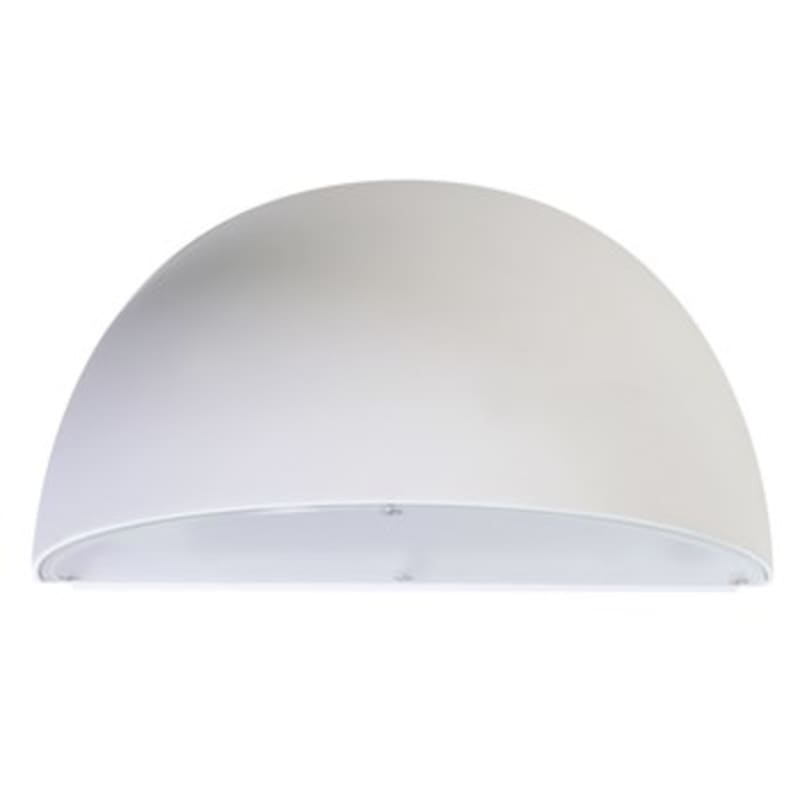

Duett White 10W/827 IP65
Part number611393EAN / GTIN7021986113938HS code8543.70
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 611393 Up or downlight wall luminaire LED.
Technical Specifications
- Manufacturer part number (MPN)
- 611393
- EAN / GTIN
- 7021986113938
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 6 pcs
- IP rating
- IP65
- Power
- 10 W
- Efficacy
- 35 lm/W
- Lumen
- 350lm
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Outdoor
- System wattage
- 10W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Socket
- E27
- Light source included
- Yes
- Luminous flux
- 350lm
- MacAdams factor
- SDCM: 6
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 100°
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK10
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Width (mm) W
- 271
- Height (mm) H
- 142
- Depth (D)
- 148
- Weight (kg) gross/net
- 2.04 / 1.618
- Packaging dimensions (mm)
- 280 x 155 x 155
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021986113938
- SAP 1000095283
- Code 8927213
Product Documentation
Document preview: Duett White 10W/827 IP65 (611393) — Specification sheet
More from SG Armaturen
SG Armaturen
Circulus MAXI Pendant Black 30W/830
214022
SG Armaturen
Slimline PIR Black (391291)
SG Armaturen
Spike Black 11W+6W/830 2XPLUG
614914
SG Armaturen

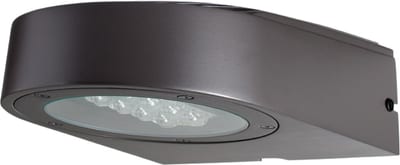

Fevik Graphite ASYM 25W/740 IK10 IP65
623251
SG Armaturen

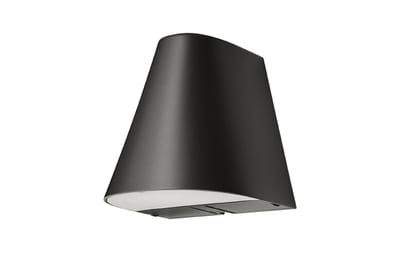

Spike Black 11W/830 2XPLUG
614911
SG Armaturen

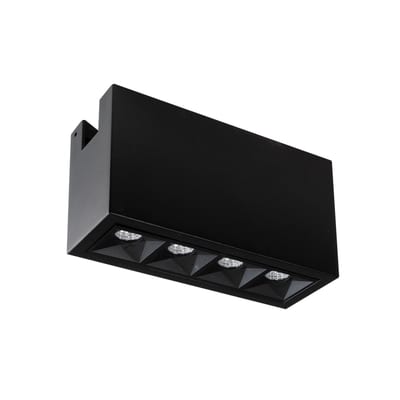

ZIP 1T Inspire 150 Black 8W/927
300766
SG Armaturen

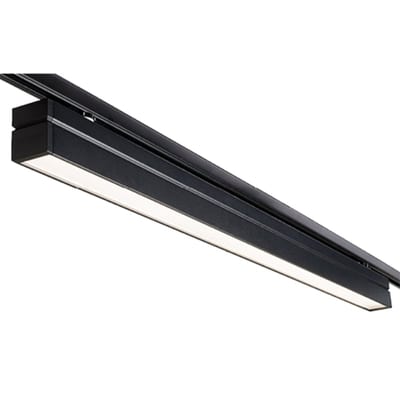

Sector 3T Black 66W/830
8246094474
SG Armaturen

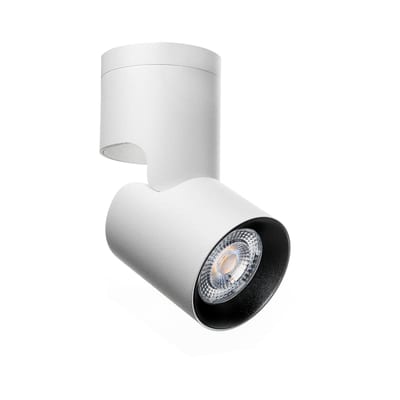

Aneto MINI S White 2700K
