SG Armaturen

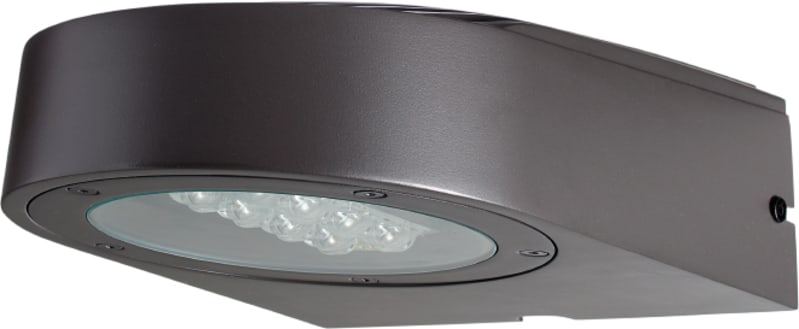

Fevik Graphite ASYM 25W/740 IK10 IP65
Part number623251EAN / GTIN7021986232516HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623251 L90/B10>100 000 hours, 2470lm, 99 lm/W, SDCM3, IP65, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 623251
- EAN / GTIN
- 7021986232516
- Sales unit
- pcs
- Package quantity
- 6 pcs
- IP rating
- IP65
- Power
- 25 W
- Efficacy
- 99 lm/W
- Lumen
- 2470lm
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Outdoor
- System wattage
- 25W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 9, B16: 16, C10: 15, C16: 26
- Type of light source
- LED
- Luminous flux
- 2470lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Asymmetric
- Optic
- Glass Clear
- ULOR (<1%)
- Yes
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK10
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Die-cast aluminium
- Colour
- Graphite
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Wind projected area
- 0,0233m² - Max 4 kg
- Length (mm) L
- 276
- Width (mm) W
- 223
- Height (mm) H
- 110
- Depth (D)
- 276
- Weight (kg) gross/net
- 3.96 / 3.3
- Packaging dimensions (mm)
- 276 x 223 x 110
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986232516
- SAP 1200258009
- Code 82232116
Product Documentation
Document preview: Fevik Graphite ASYM 25W/740 IK10 IP65 (623251) — Specification sheet
