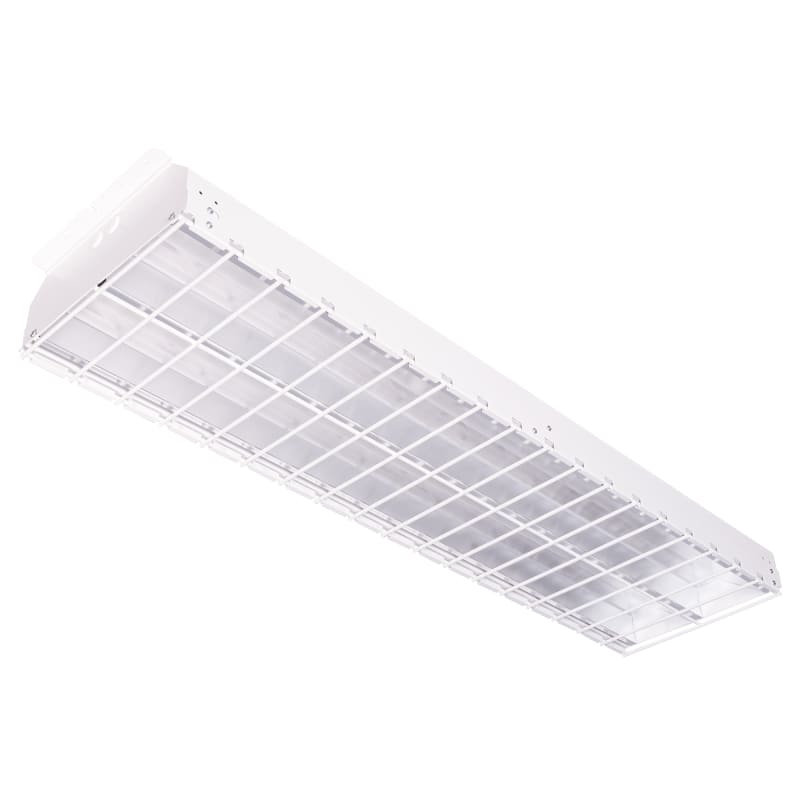

Arena 1200 Sport A20500LM 140W/8 DALI
Part number8246096508EAN / GTIN5703821183680HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246096508 ARENA SPORT ASYMMETRIC 1200 20540lm 4000K DALI, 140W, Ra>80, SDCM3, KL1, IP23.
Technical Specifications
- Manufacturer part number (MPN)
- 8246096508
- EAN / GTIN
- 5703821183680
- Sales unit
- pcs
- Package quantity
- 14 pcs
- Power
- 140 W
- Luminous flux
- 20500 lm
- Efficacy
- 147 lm/W
- Lumen
- 20540lm
- IP Class
- IP23
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 140W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 9, B16: 15, C10: 16, C16: 26
- Leakage current (mA)
- 0.31
- Type of light source
- LED
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Asymmetric
- Optic
- Satin Matt Reflector
- Type
- DALI-2
- Luminaire class
- Class I
- Surge protection
- 1/2 kV
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
- Module
- 1200
- Connection
- 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring
- Length (mm) L
- 1205
- Width (mm) W
- 305
- Height (mm) H
- 114
- Weight (kg) gross/net
- 11.5 / 11
- Packaging dimensions (mm)
- 1228 x 310 x 118
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821183680
- SAP 1200664429
- Code 83105160
Product Documentation
Document preview: Arena 1200 Sport A20500LM 140W/8 DALI (8246096508) — Specification sheet
