SG Armaturen
CircLED Multi 36W/740 grey adjustable
Part number8246086408EAN / GTIN5703821166287HS code9405.11
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

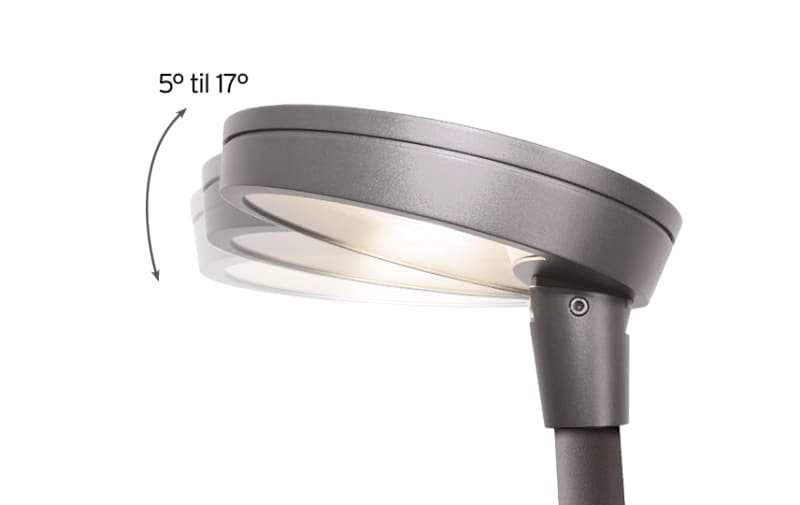

SG Armaturen 8246086408 CircLED Multi 36W 4000K grey adjustable luminaire.
Technical Specifications
- Manufacturer part number (MPN)
- 8246086408
- EAN / GTIN
- 5703821166287
- Sales unit
- pcs
- Power
- 36 W
- Efficacy
- 127 lm/W
- Lumen
- 3950 lm
- IP Class
- IP66
- Colour temperature
- 4000 K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 100,000 L80/B10>
- Mounting
- Post - adjustable head 5-17 degrees, outdoor
- System wattage
- 31 W
- Voltage
- 220-240 V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 3950 lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Multi lens
- Optic
- Lens
- ULOR (<1%)
- Yes / Yes, up to 17 degrees tilt angle
- Type
- On/Off
- Luminaire class
- Class II
- IK Class
- IK09
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker-free lighting
- Housing
- Die-cast aluminium
- Colour
- Grey (structure 2150 sable)
- Optics
- Tempered glass
- Module
- Top adjustable 5-17 degrees
- Cable
- Cable 2x1 mm2, 6 m
- Wind projected area
- 0.0415 m2 - Max 6.2 kg
- Length (mm) L
- 460
- Width (mm) W
- 390
- Height (mm) H
- 185
- Weight (kg) gross/net
- 8.2 / 8
- P
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821166287
- SAP 1200056108
- Code 81904662
Product Documentation
Document preview: CircLED Multi 36W/740 grey adjustable (8246086408) — Specification sheet
