SG Armaturen

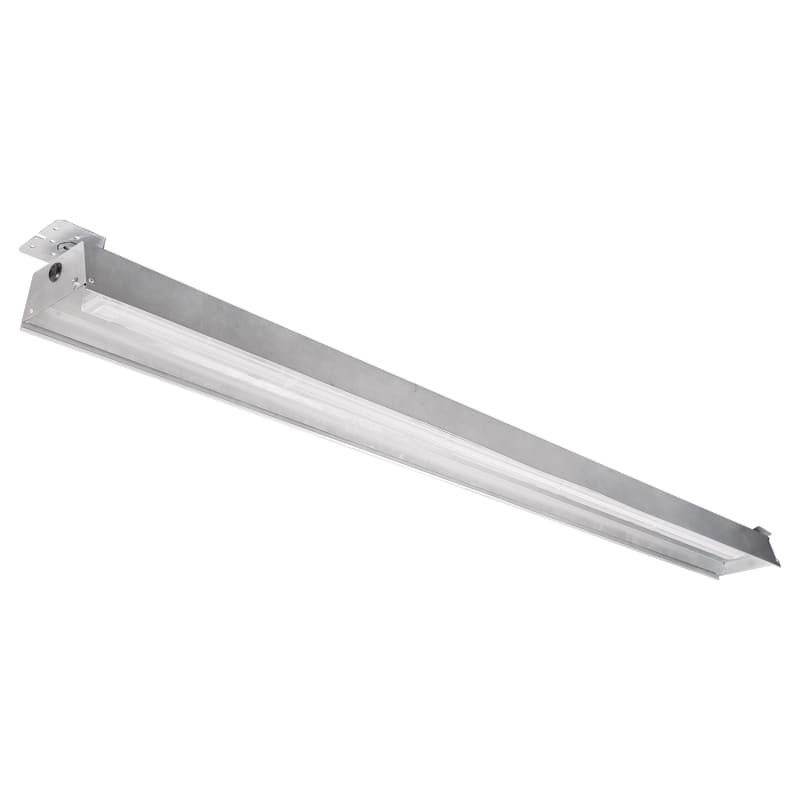

Arena ECO 1500 WIDE 10000LM 72W/830
Part number607033EAN / GTIN7021986070330HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 607033 ARENA ECO 1200 WIDE 9900lm 3000K, 72W, Ra>80, SDCM3, L80/B20 100000, IP23, KL1.
Technical Specifications
- Manufacturer part number (MPN)
- 607033
- EAN / GTIN
- 7021986070330
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 72 W
- Luminous flux
- 10000 lm
- Efficacy
- 138 lm/W
- Adjustable luminous flux
- 5643lm - 9900lm
- Lumen
- 9900lm
- IP Class
- IP23
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 72W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 18, B16: 30, C10: 31, C16: 51
- Leakage current (mA)
- 0.22
- Type of light source
- LED
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Beam angle
- 90°
- UGR
- UGR<25
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK10
- Contains light source of energy class
- D
- Housing
- Steel
- Optics
- Acrylic (PMMA)
- Module
- 1500
- Connection
- 5-pole screwless terminal block with 5x2,5mm² through wiring
- Length (mm) L
- 1552
- Width (mm) W
- 134
- Height (mm) H
- 72
- Weight (kg) gross/net
- 4.1 / 3.8
- Packaging dimensions (mm)
- 1596 x 76 x 148
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986070330
- SAP 1200888922
- Code 84131579
Product Documentation
Document preview: Arena ECO 1500 WIDE 10000LM 72W/830 (607033) — Specification sheet
