SG Armaturen

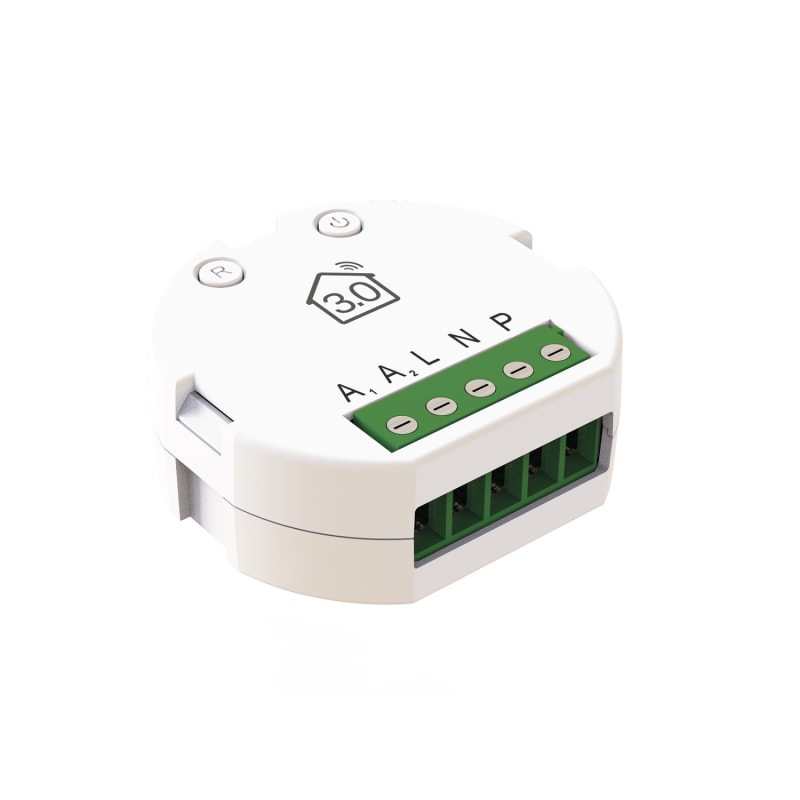

Smart PILL ON-OFF Micro 3.0 PF
Part number820809EAN / GTIN7021988208090HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820809 PILL ON-OFF MICRO 3.0 PF.
Technical Specifications
- Manufacturer part number (MPN)
- 820809
- EAN / GTIN
- 7021988208090
- Sales unit
- pcs
- Package quantity
- 160 pcs
- Wattage
- 1000VA
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Function
- Integrated time control and astronomical clock
- Standby power
- <0.5W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Overvoltage protection
- Yes
- Overload protection
- Yes
- Type
- SG Smart / On-Off, Potential-free relay
- Luminaire class
- Class II
- Housing
- Polycarbonat (PC)
- Colour
- White
- Connection
- Screw terminal 0.5 - 2.5 mm²
- Length (mm) L
- 48
- Width (mm) W
- 46
- Height (mm) H
- 18
- Weight (kg) gross/net
- 0.052 / 0.031
- Packaging dimensions (mm)
- 80 x 70 x 30
- Mounting method
- Built-in
- Assembly arrangement
- Basic element
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.5 W
- Material quality
- Thermoplastic
- Type of load
- Universal
- Material
- Plastic
- Light value memory
- No
- Substation input
- No
- RAL-number (similar)
- 9003
- Serial dimmer
- No
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- Yes
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal voltage
- 220–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 48 mm
- Device height
- 46 mm
- Device depth
- 18 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 18 mm
- App control via Bluetooth
- Yes
- Nominal power resistive load
- 1000 W
- Nominal power capacitive load
- 1000 VA
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Max. switching power LED
- 1000 W
- Min. brightness controllable
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988208090
- SAP 1201008603
- Code 84361925
Product Documentation
Document preview: Smart PILL ON-OFF Micro 3.0 PF (820809) — Specification sheet
