SG Armaturen

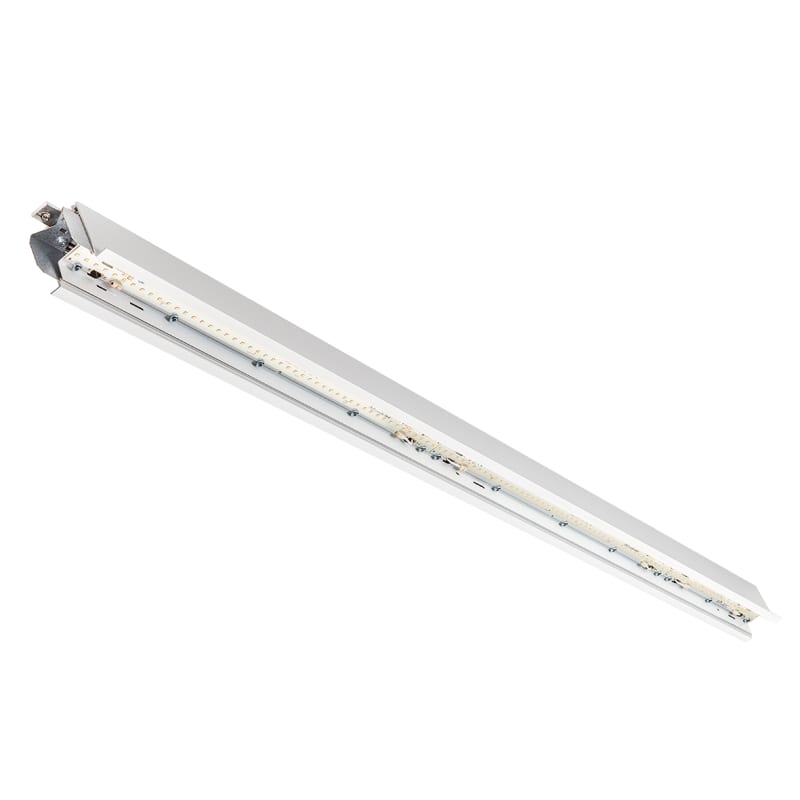

Lineal Recessed 1400 White 21W/840 DALI
Part number8246095680EAN / GTIN5703821180191HS code9405.99
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246095680 LINEAL RECESSED 1400 WHITE 4000K DALI 21W 2510lm RA>80, Class In, IP20, SDCM 3.
Technical Specifications
- Manufacturer part number (MPN)
- 8246095680
- EAN / GTIN
- 5703821180191
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power
- 21 W
- Efficacy
- 116 lm/W
- Lumen
- 2440lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 21W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 33
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 2440lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- UGR
- UGR<28
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Module
- 1400
- Connection
- 5-pole Winsta mini with 5x1,5mm2 through wiring
- Length (mm) L
- 1401
- Width (mm) W
- 62
- Height (mm) H
- 62
- Weight (kg) gross/net
- 2.9 / 2.6
- Packaging dimensions (mm)
- 1505 x 71 x 64
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.99
Cross References
- EAN 5703821180191
- SAP 1200528771
- Code 82680011
Product Documentation
Document preview: Lineal Recessed 1400 White 21W/840 DALI (8246095680) — Specification sheet
