SG Armaturen

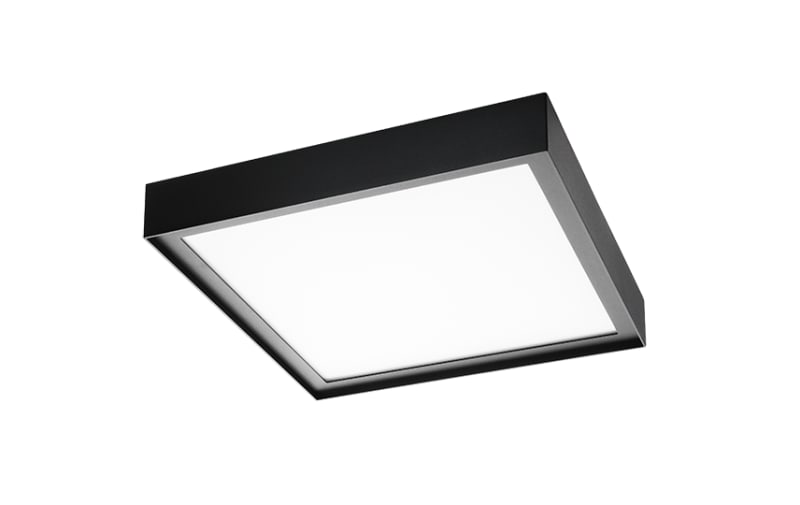

DISC 285X285 Black 22W/827 DALI
Part number606075EAN / GTIN7021986060751HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606075 DISC 285X285 BLACK 2700K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 606075
- EAN / GTIN
- 7021986060751
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 22 W
- Efficacy
- 100 lm/W
- Lumen
- 2000lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 20W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 57, C16: 92
- Type of light source
- LED
- Luminous flux
- 2000lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- DALI-2
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Length (mm) L
- 283
- Width (mm) W
- 283
- Height (mm) H
- 55
- Weight (kg) gross/net
- 2.53 / 2.098
- Packaging dimensions (mm)
- 293 x 298 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060751
- SAP 1200374552
- Code 82387202
Product Documentation
Document preview: DISC 285X285 Black 22W/827 DALI (606075) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense 320 TW DALI DT8
212304
SG Armaturen
Circled Multi GREY TOP 19W/740
8246084523
SG Armaturen
DISC 290 Black 17W/840 DALI
606051
SG Armaturen
EDGE Direct White 7W/830
611354
SG Armaturen

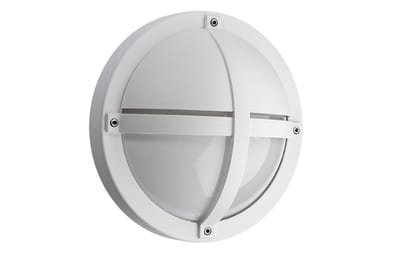

Tanto White 11,5W/830 IP65 Sensor
641541
SG Armaturen

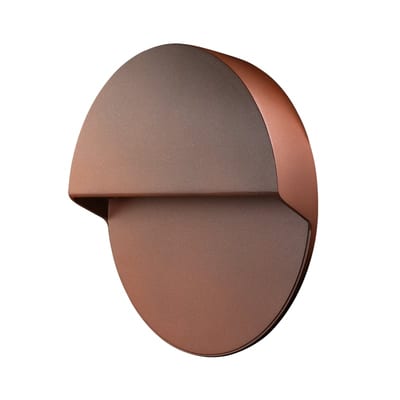

Arlon Round Corten 10W/830
653618
SG Armaturen

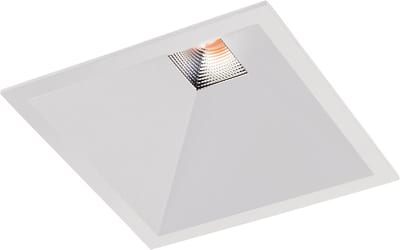

SOFT Square White 12W/927 60° DALI
903262
SG Armaturen

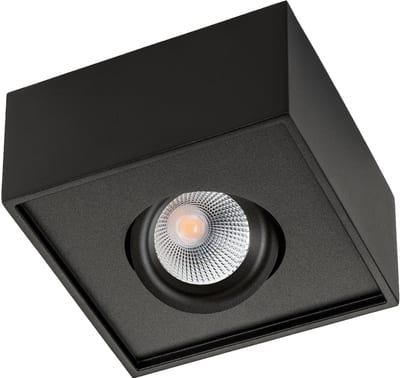

CUBE LUX Black 7W/927 DALI
