SG Armaturen

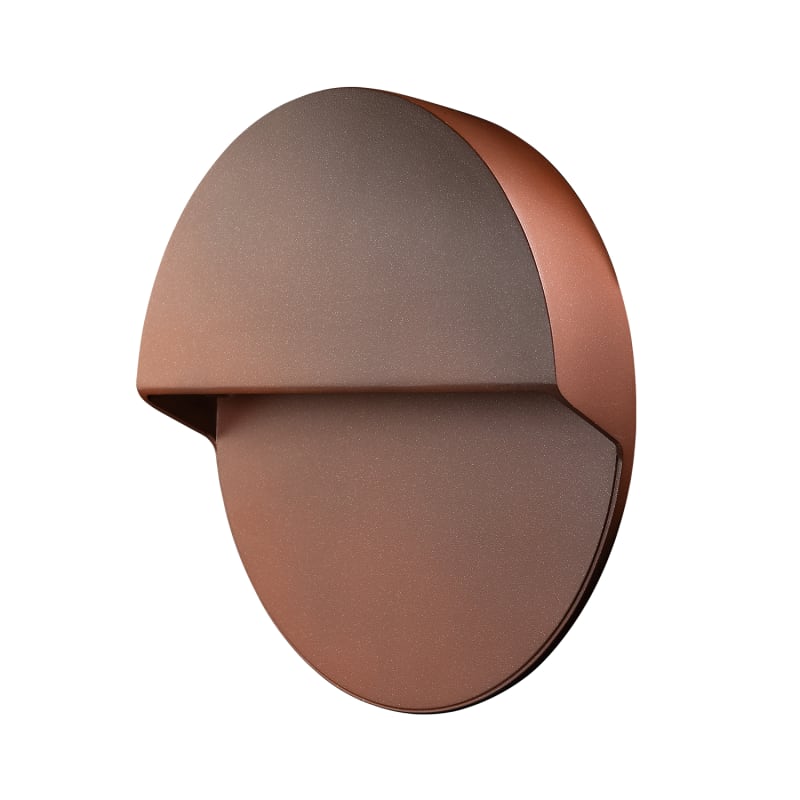

Arlon Round Corten 10W/830
Part number653618EAN / GTIN7021986536188HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 653618 ARLON ROUND CORTEN 3000K, 10W, Ra>80, SDCM:3. Cl II, IP65, 100.000, L80/B20>.
Technical Specifications
- Manufacturer part number (MPN)
- 653618
- EAN / GTIN
- 7021986536188
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 10 W
- Efficacy
- 86 lm/W
- Lumen
- 860lm
- Wattage
- 10W
- IP Class
- IP65
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Wall, Outdoor
- System wattage
- 10W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 860lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Diffuser
- Visible flicker (PstLM)
- 0.08
- Stroboscopic flicker (SVM)
- 0.75
- Type
- Trailing edge
- Driver
- 350mA
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- B
- Housing
- Aluminium
- Optics
- Polycarbonat (PC)
- Connection
- Screwless terminal block
- Length (mm) L
- 269
- Width (mm) W
- 266
- Height (mm) H
- 47
- Weight (kg) gross/net
- 1.5 / 1.295
- Packaging dimensions (mm)
- 275 x 275 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986536188
- SAP 1200730391
- Code 83859171
Product Documentation
Document preview: Arlon Round Corten 10W/830 (653618) — Specification sheet
More from SG Armaturen
SG Armaturen
SOFT Square White 12W/927 60° DALI
903262
SG Armaturen
CUBE LUX Black 7W/927 DALI
902563
SG Armaturen
Frame SQ MAXI Graphite 19W/830 Sensor
605363
SG Armaturen
SOFT SLIM Black 11W/940
3246798
SG Armaturen
Arena 1200 57W/840 DALI
8246093530
SG Armaturen
ZIP TUBE Pendant MINI 555mm (320525)
SG Armaturen

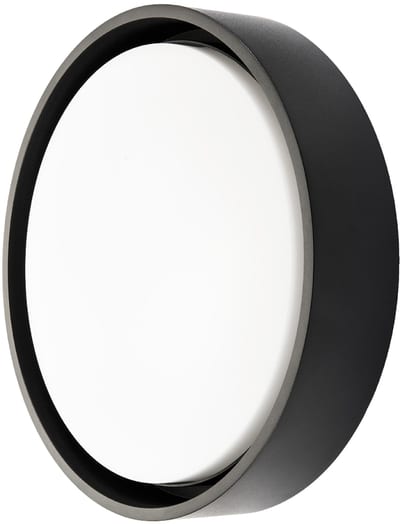

Frame Round MAXI Black 19W/830 Twilight
605152
SG Armaturen

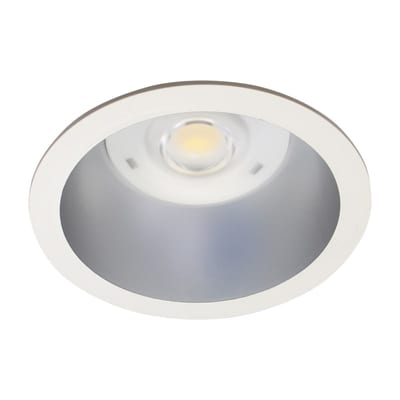

RAX SOFT 150 Satin 2200 22W/840
