SG Armaturen

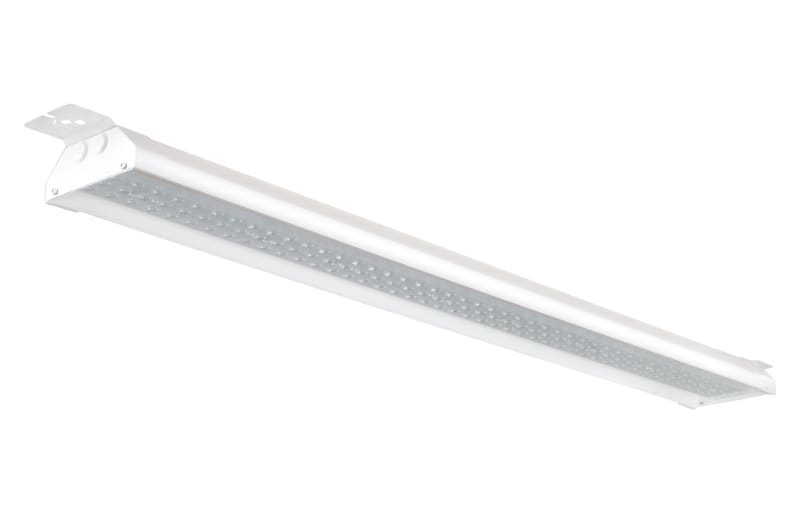

Arena 1200 57W/840 DALI
Part number8246093530EAN / GTIN5703821174541HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246093530 Arena 1200 69W 4000K Ra>80 DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 8246093530 EAN / GTIN: 5703821174541 Sales unit: pcs Power: 57 W Efficacy: 175 lm/W Lumen: 9100lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 70,000 L90/B10> Mounting: Suspended or surface, Indoor System wattage: 52W Voltage: 220-240V Frequency (Hz): 50/60Hz Max. luminaires per circuit breaker: B10: 13, B16: 20, C10: 21, C16: 34 Leakage current (mA): 0.08 Type of light source: LED Luminous flux: 9100lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Medium Beam angle: Medium UGR: UGR<19 Visible flicker (PstLM): 0.02 Stroboscopic flicker (SVM): 0 Type: DALI-2 Luminaire class: Class I IK Class: IK08 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1200 Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1194 Width (mm) W: 138 Height (mm) H: 63 Weight (kg) gross/net: 3.8 / 3.6 Packaging dimensions (mm): 1285 x 148 x 65 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821174541
- SAP 1200056021
- Code 81904861
Product Documentation
Document preview: Arena 1200 57W/840 DALI (8246093530) — Specification sheet
More from SG Armaturen
SG Armaturen
ZIP TUBE Pendant MINI 555mm (320525)
SG Armaturen
Frame Round MAXI Black 19W/830 Twilight
605152
SG Armaturen
RAX SOFT 150 Satin 2200 22W/840
212570
SG Armaturen
Multi Concept 21W/830 DALI
8246091655
SG Armaturen
TUBE ECO 3T White 26W/940 32° DALI
312451
SG Armaturen
Lineal SURF 1400 22W/840 Black DALI
8246095842
SG Armaturen
Frame SQ MAXI Black 19W/830 Sensor
605353
SG Armaturen
Callisto WALL White 4W/830 IP65
912015
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8246093530?
- 8246093530 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 8246093530.
- What is the HS code for 8246093530?
- The customs tariff (HS) code for 8246093530 is 9405.11.
- Who manufactures 8246093530?
- 8246093530 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 8246093530?
- Yes — the 8246093530 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8246093530?
- The minimum order quantity is 1.
- Is 8246093530 available?
- Yes — 8246093530 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
