SG Armaturen

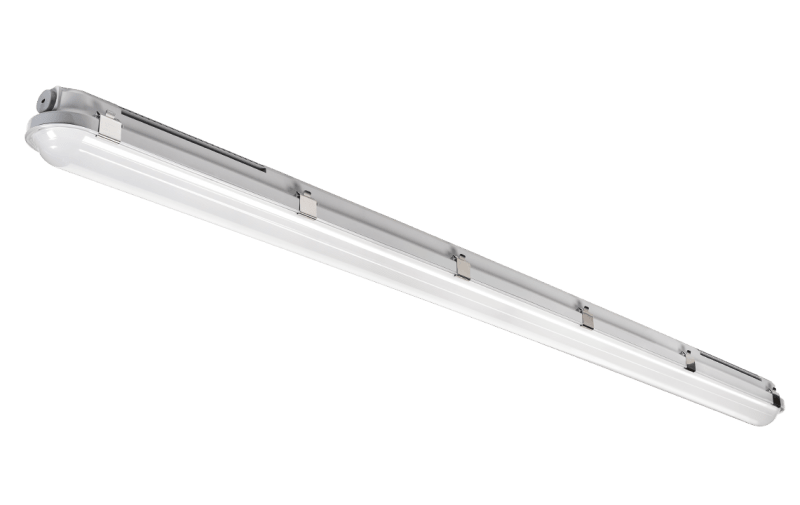

TYSNES66 1500 40W/840
Part number120032EAN / GTIN7021981200329HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120032 TYSNES 66 1500 4000K, 40W, 6400lm, Ra>80, SDCM 3, L80/B20 100000, IP66, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 120032 EAN / GTIN: 7021981200329 Sales unit: pcs Package quantity: 8 pcs Power: 40 W Efficacy: 160 lm/W Lumen: 6400lm IP Class: IP66 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 40W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36 Leakage current (mA): 0.31 Type of light source: LED Luminous flux: 6400lm MacAdams factor: SDCM: 3 minimum ambient temperature: -20°C Light distribution: Direct Optic: Opal Beam angle: 117° UGR: UGR<25 Visible flicker (PstLM): 0.01 Stroboscopic flicker (SVM): 0.05 Photobiological safety: RG 0 Type: On/Off Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 1500 Connection: 3-pole screwless terminal block with 3x2,5mm² through wiring Length (mm) L: 1500 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 1.95 / 1.75 Packaging dimensions (mm): 1525 x 85 x 90 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200329
- SAP 1200643821
- Code 83072589
Product Documentation
Document preview: TYSNES66 1500 40W/840 (120032) — Specification sheet
More from SG Armaturen

SG Armaturen
Sense ECO 600X600 Opal prismatic 27W/830
212222

SG Armaturen
TYSNES66 1200 34W/840
120031

SG Armaturen
Artes Black 8W/827 IP65 IK10
641706

SG Armaturen
WAVE 600 White 18W/830
111275

SG Armaturen
Junistar TUBE Round White 2700K
902700

SG Armaturen
Junistar ECO IN/OUT Black 580LM 6W/927
905239

SG Armaturen
Junistar TUBE Square Black 3X 2700K
902739

SG Armaturen
Junistar TUBE Round Black 2700K
902703
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 120032?
- 120032 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 120032.
- What is the HS code for 120032?
- The customs tariff (HS) code for 120032 is 9405.11.
- Who manufactures 120032?
- 120032 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 120032?
- Yes — the 120032 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 120032?
- The minimum order quantity is 1.
- Is 120032 available?
- Yes — 120032 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
