SG Armaturen
TYSNES66 1200 34W/840
Part number120031EAN / GTIN7021981200312HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

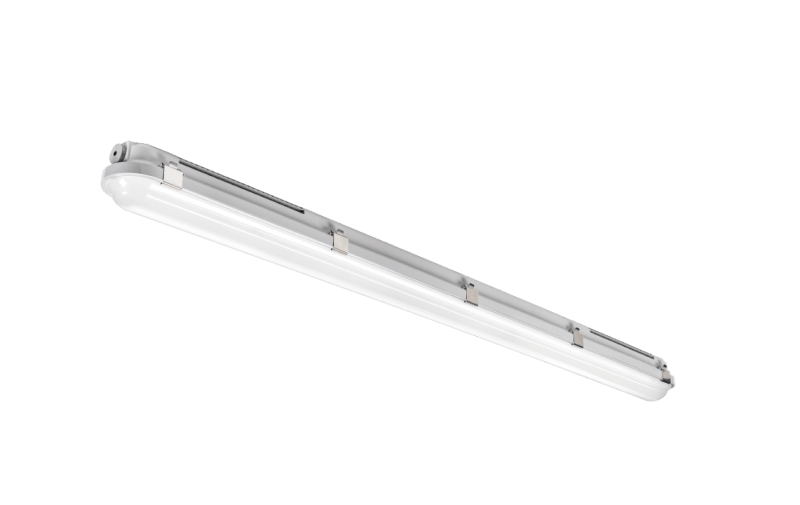

SG Armaturen 120031 TYSNES 66 1200 4000K, 34W, 5510lm, Ra>80, SDCM 3, L80/B20 100000, IP66, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 120031 EAN / GTIN: 7021981200312 Sales unit: pcs Package quantity: 8 pcs Power: 34 W Efficacy: 162 lm/W Lumen: 5510lm IP Class: IP66 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 34W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36 Leakage current (mA): 0.31 Type of light source: LED Luminous flux: 5510lm MacAdams factor: SDCM: 3 minimum ambient temperature: -20°C Light distribution: Direct Optic: Opal Beam angle: 117° UGR: UGR<25 Visible flicker (PstLM): 0.01 Stroboscopic flicker (SVM): 0.05 Photobiological safety: RG 0 Type: On/Off Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 1200 Connection: 3-pole screwless terminal block with 3x2,5mm² through wiring Length (mm) L: 1200 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 1.65 / 1.5 Packaging dimensions (mm): 1225 x 85 x 90 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200312
- SAP 1200643820
- Code 83072593
Product Documentation
Document preview: TYSNES66 1200 34W/840 (120031) — Specification sheet
