SG Armaturen
TYSNES66 650 14W/840
Part number120030EAN / GTIN7021981200305HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

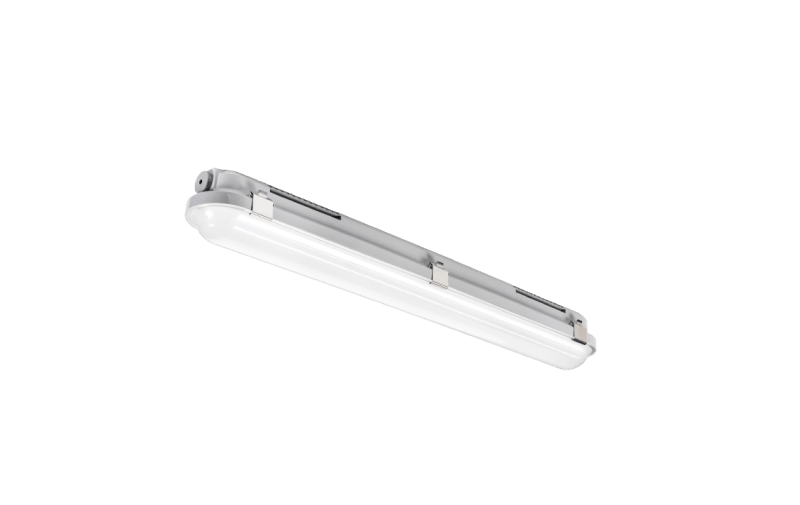

SG Armaturen 120030 TYSNES 66 650 4000K, 14W, 2060lm, Ra>80, SDCM 3, L80/B20 100000, IP66, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 120030 EAN / GTIN: 7021981200305 Sales unit: pcs Package quantity: 8 pcs Power: 14 W Efficacy: 147 lm/W Lumen: 2060lm IP Class: IP66 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 14W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 40, B16: 60, C10: 40, C16: 60 Leakage current (mA): 0.21 Type of light source: LED Luminous flux: 2060lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Opal Beam angle: 121° UGR: UGR<25 Visible flicker (PstLM): 0.19 Stroboscopic flicker (SVM): 0.02 Photobiological safety: RG 0 Type: On/Off Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 650 Connection: Screwless terminal block Length (mm) L: 650 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 0.9 / 0.8 Packaging dimensions (mm): 680 x 85 x 90 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200305
- SAP 1200643819
- Code 83072598
Product Documentation
Document preview: TYSNES66 650 14W/840 (120030) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense PRO 600X600 3000K Ra>80
212670
SG Armaturen
SG Ceiling CUP Black
003163
SG Armaturen

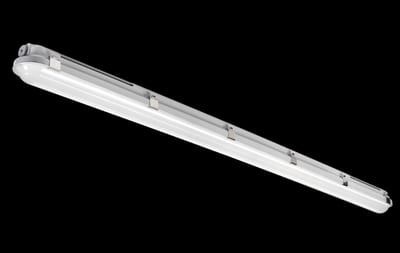

TYSNES66 1500 40W/840 Sensor
