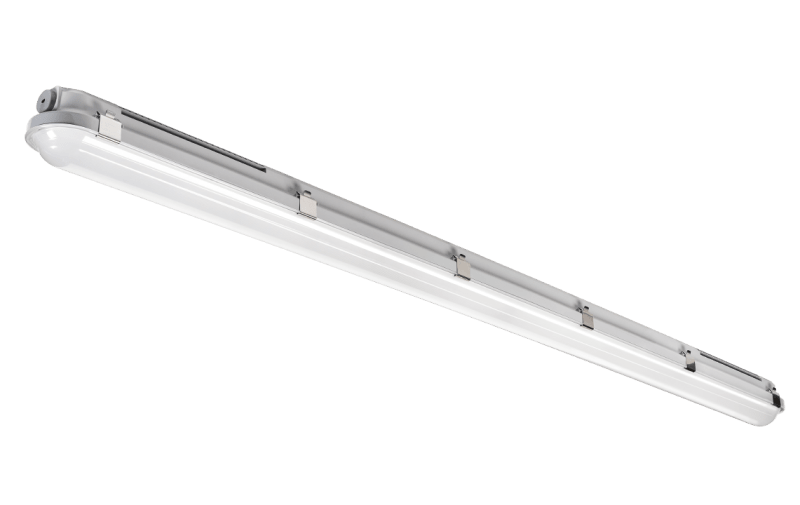

TYSNES66 1500 40W/840 Sensor
Part number120036EAN / GTIN7021981200367HS code8536.90
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120036 TYSNES66 1500 4000K SENSOR, 40W, 6400lm, Ra>80, SDCM 3, L80/B20>100.000, IP66, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 120036 EAN / GTIN: 7021981200367 HS code: 8536.90 Sales unit: pcs Package quantity: 8 pcs Power: 40 W Efficacy: 160 lm/W Lumen: 6400lm IP Class: IP66 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 40W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36 Leakage current (mA): 0.31 Type of light source: LED Luminous flux: 6400lm MacAdams factor: SDCM: 3 minimum ambient temperature: -20°C Light distribution: Direct Optic: Opal Beam angle: 117° UGR: UGR<25 Type: Sensor Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 1500 Connection: 5-pole screwless terminal block with 3x2,5mm² and 2x1,5mm² through wiring Length (mm) L: 1500 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 2.05 / 1.85 Packaging dimensions (mm): 1525 x 85 x 90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021981200367
- SAP 1200679677
- Code 83137379
Product Documentation
Document preview: TYSNES66 1500 40W/840 Sensor (120036) — Specification sheet
