SG Armaturen

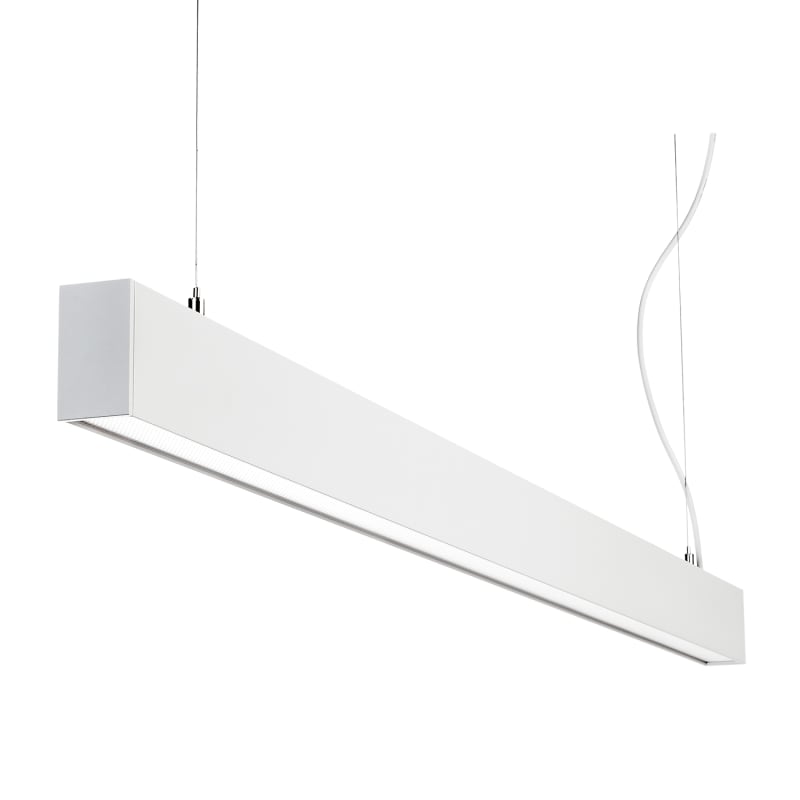

Inspire 1200 White Prism 29W/840
Part number212854EAN / GTIN7021982128547HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212854 INSPIRE 1200 WHITE PRISMATIC 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 212854
- EAN / GTIN
- 7021982128547
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 29 W
- Efficacy
- 142 lm/W
- Lumen
- 4130lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 29W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Leakage current (mA)
- 0.07
- Type of light source
- LED
- Luminous flux
- 4130lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 55/45%
- Optic
- Prism Optic
- UGR
- UGR<19
- Visible flicker (PstLM)
- <1
- Stroboscopic flicker (SVM)
- <0,4
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Driver
- 800mA
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Optics
- Polycarbonat (PC)
- Module
- 1200
- Wire set
- 2x2m wire kit
- Cable
- Cable 3x0,75mm² 2,5m
- Length (mm) L
- 1240
- Width (mm) W
- 38
- Height (mm) H
- 67
- Weight (kg) gross/net
- 3.6 / 3.3
- Packaging dimensions (mm)
- 1365 x 90 x 61
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- White
- Material cover
- Plastic, transparent
- Type of grid
- None
- Voltage type
- AC
- Nominal current
- 800 mA
- Type of control gear
- LED operating device current-controlled
- No dim function
- No
- Colour consistency (McAdam ellipse)
- SDCM3
- Light outlet
- Direct/indirect
- Direct-/indirect proportion separately controllable
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- I
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 29 W
- Rated luminous flux according to IEC 62722-2-1
- 4130 lm
- Colour of light
- White
- Luminaire efficacy
- 142 lm/W
- Colour rendering index CRI
- 80-89
- Unified Glare Ratio (UGR)
- 19
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 38 mm
- Height/depth
- 67 mm
- Length
- 1240 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 3
- Conductor cross section
- 2.5 mm²
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982128547
- SAP 1200776455
- Code 83937418
Product Documentation
Document preview: Inspire 1200 White Prism 29W/840 (212854) — Specification sheet
