SG Armaturen

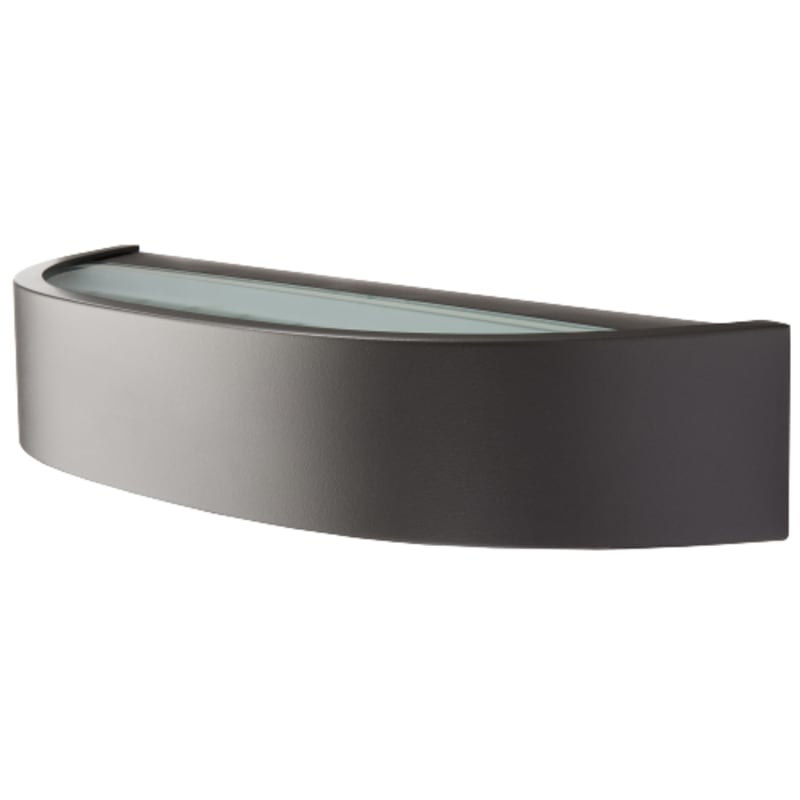

Curve Graphite 7W/840
Part number623342EAN / GTIN7021986233421HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623342 CURVE GRAPHITE 10W LED 4000K DOWNLIGHT 550lm, RA>80, IP65, IK06, SDCM 3, L70/B10, A+.
Technical Specifications
- Manufacturer part number (MPN)
- 623342
- EAN / GTIN
- 7021986233421
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 7 W
- Efficacy
- 76 lm/W
- Lumen
- 530lm
- IP Class
- IP65
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 530lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect
- Optic
- Glass Clear
- Beam angle
- 110°
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK06
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Width (mm) W
- 320
- Height (mm) H
- 60
- Depth (D)
- 103
- Weight (kg) gross/net
- 1.68 / 1.4
- Packaging dimensions (mm)
- 330 x 120 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986233421
- SAP 1200369605
- Code 82376184
Product Documentation
Document preview: Curve Graphite 7W/840 (623342) — Specification sheet
