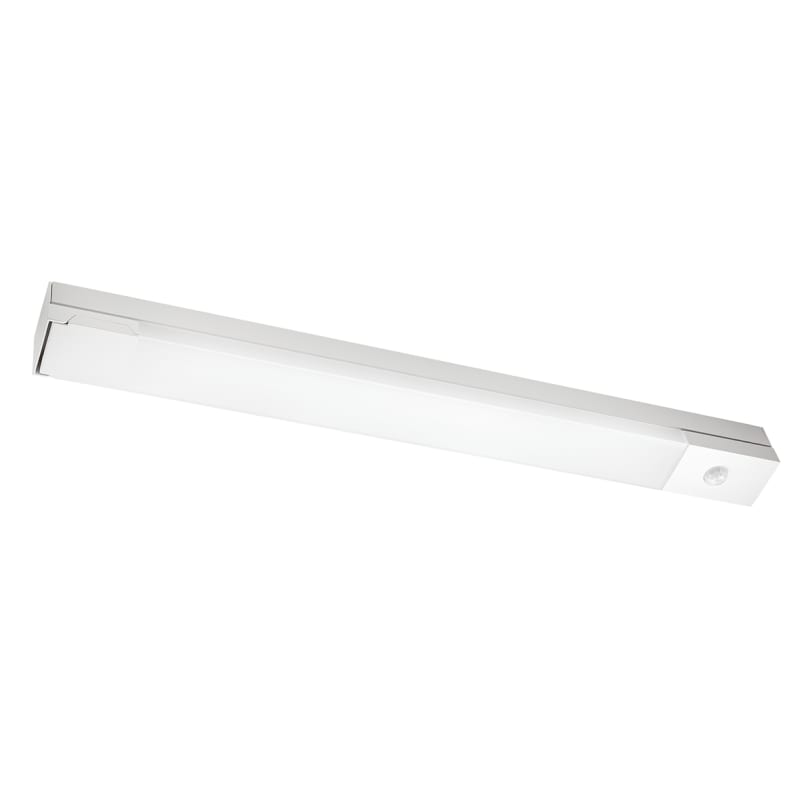

Prelude SQ White 16W/940 IP44 PIR with Socket
Part number111387EAN / GTIN7021981113872HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 111387 PRELUDE SQUARE WHITE With SOCKET KL In 4000K PIR, 1540lm 16W, Ra>90, SDCM3, L90/B10 50.000, CL In, IP20, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 111387
- EAN / GTIN
- 7021981113872
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP44
- Power
- 16 W
- Efficacy
- 131 lm/W
- Lumen
- 1700lm
- IP Class
- IP44 (mounted horizontally) / IP40 (mounted vertically)
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
- System wattage
- 13W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 1700lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Acrylic diffuser
- UGR
- UGR<28
- Type
- PIR Sensor
- Luminaire class
- Class I
- IK Class
- IK05
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Width (mm) W
- 686
- Height (mm) H
- 59
- Depth (D)
- 62
- Weight (kg) gross/net
- 1.402 / 1.256
- Packaging dimensions (mm)
- 695 x 77 x 65
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021981113872
- SAP 1200596529
- Code 82976040
Product Documentation
Document preview: Prelude SQ White 16W/940 IP44 PIR with Socket (111387) — Specification sheet
