SG Armaturen

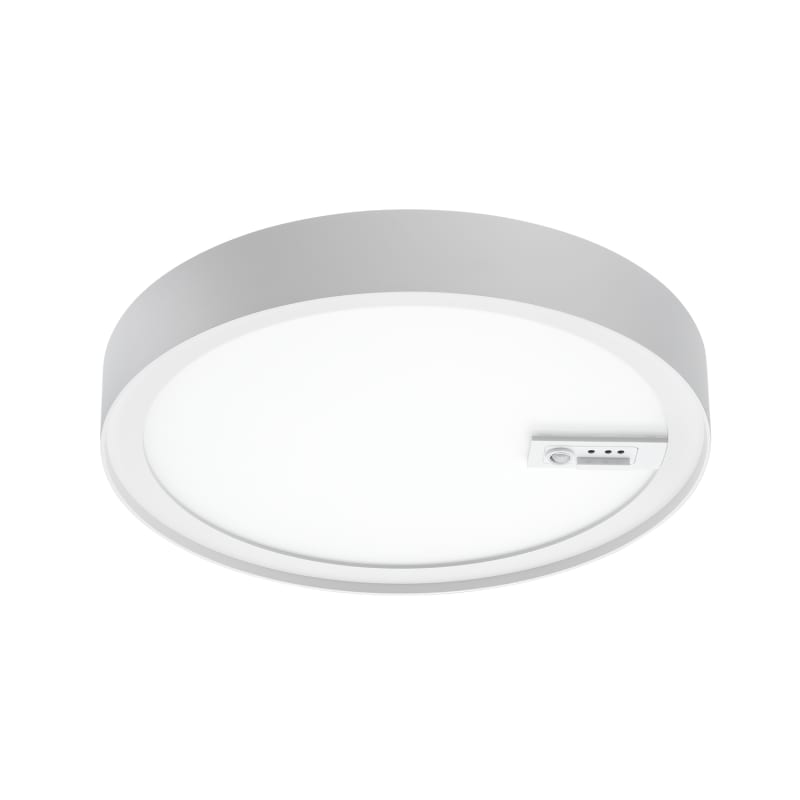

DISC 290 Connect White 3000K Ra>90
Part number606237EAN / GTIN7021986062373HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606237 DISC 290 CONNECT WHITE 3000K RA>90, 17W, 1692lm, Ra>90, SDCM 3, L80/B20>100,000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606237
- EAN / GTIN
- 7021986062373
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Colour temperature
- 3000 K
- Colour rendering index
- Ra >90
- Efficacy
- 95 lm/W
- Lumen
- 1710lm
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 18W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 25, B16: 40, C10: 41, C16: 68
- Leakage current (mA)
- 0.50
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 1710lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<25
- Type
- Connect
- Luminaire class
- Class II
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 290
- Connection
- 3 pole Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 288
- Weight (kg) gross/net
- 2.005 / 1.846
- Packaging dimensions (mm)
- 308 x 303 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062373
- SAP 1200888901
- Code 84131590
Product Documentation
Document preview: DISC 290 Connect White 3000K Ra>90 (606237) — Specification sheet
More from SG Armaturen
SG Armaturen
Callisto WALL Square Black 3W/827
923120
SG Armaturen
Lineal S Start KIT Black DALI
8249044942
SG Armaturen
Circled Bollard SOFT 16W/930 Black
8246087067
SG Armaturen

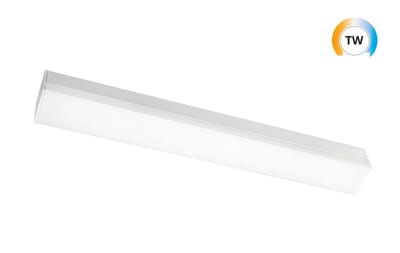

Prelude Square White KL II 2000-4000K TW
111393
SG Armaturen

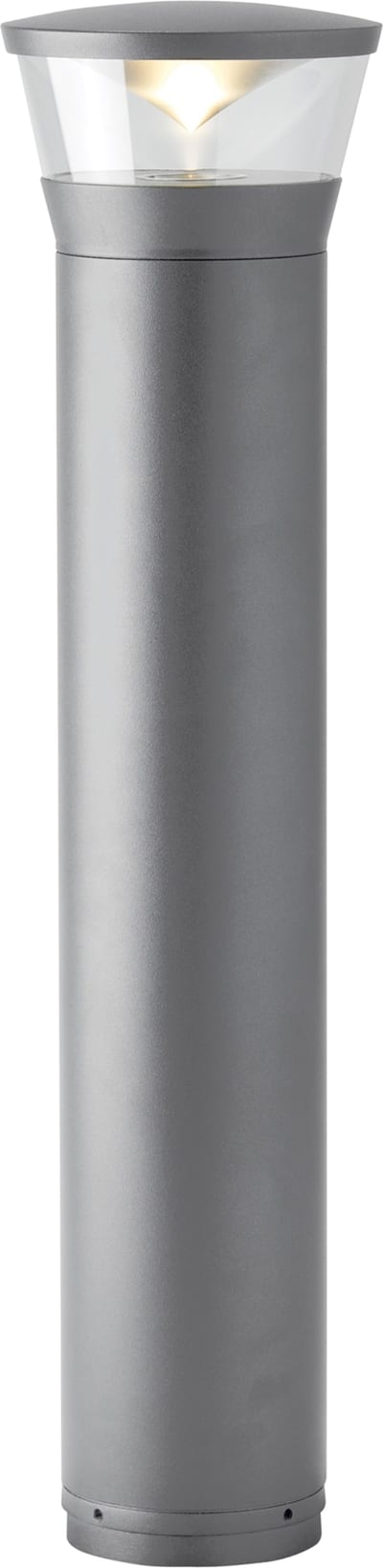

Circled Bollard SOFT 16W/930 GREY
8246096032
SG Armaturen

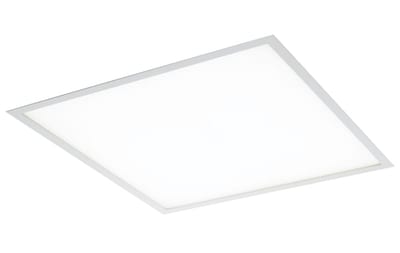

Sense 600X600 Prism 51W/930 IP65 T DALI
8246096304
SG Armaturen

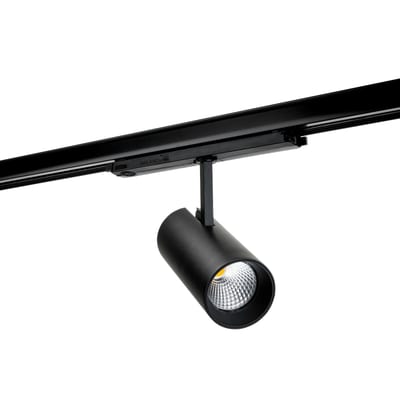

TUBE PRO 3T Black 41W/930 32° DALI
320856
SG Armaturen

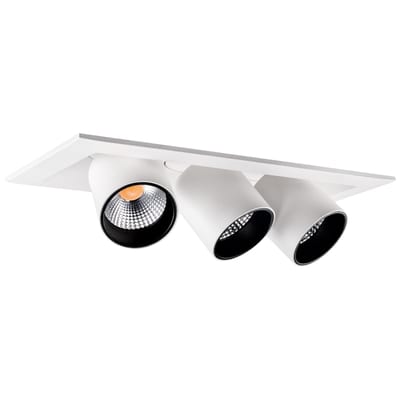

Junistar TUBE Square White 3X 4000K
902738
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 606237?
- 606237 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 606237.
- What is the HS code for 606237?
- The customs tariff (HS) code for 606237 is 9405.11.
- Who manufactures 606237?
- 606237 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 606237?
- Yes — the 606237 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 606237?
- The minimum order quantity is 1.
- Is 606237 available?
- Yes — 606237 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
