SG Armaturen

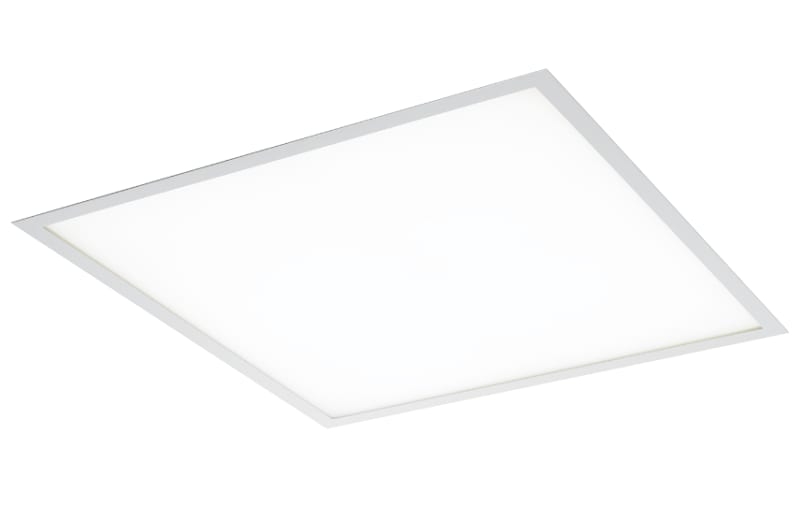

Sense 600X600 Prism 51W/930 IP65 T DALI
Part number8246096304EAN / GTIN5703821181594HS code9405.11
Lighting & Electrical Accessories
LED Panels
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246096304 SENSE IP65 T 3000K RA<90 DALI 51W 4690lm, CL In, IP54/65, IK07, SDCM 3, L80/B50 100,000.
Technical Specifications
- Manufacturer part number (MPN)
- 8246096304
- EAN / GTIN
- 5703821181594
- Sales unit
- pcs
- IP rating
- IP65
- Power
- 51 W
- Efficacy
- 113 lm/W
- Lumen
- 4840lm
- IP Class
- IP54/IP65
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B50>
- Mounting
- Recessed, Indoor
- System wattage
- 43W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 12, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 4840lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Prism Optic
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0.07
- Stroboscopic flicker (SVM)
- 0.01
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- IK Class
- IK07
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Colour
- White smooth (Ral 9016 gloss 30)
- Optics
- Tempered glass
- Module
- 595x595 Exposed T-carrier 15/24mm
- Cable
- Cable 5x0,75mm² 2,5m Halogen free
- Length (mm) L
- 595
- Width (mm) W
- 595
- Height (mm) H
- 94
- Weight (kg) gross/net
- 12.7 / 12.1
- Packaging dimensions (mm)
- 625 x 605 x 97
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821181594
- SAP 1200549834
- Code 82881592
Product Documentation
Document preview: Sense 600X600 Prism 51W/930 IP65 T DALI (8246096304) — Specification sheet
