SG Armaturen

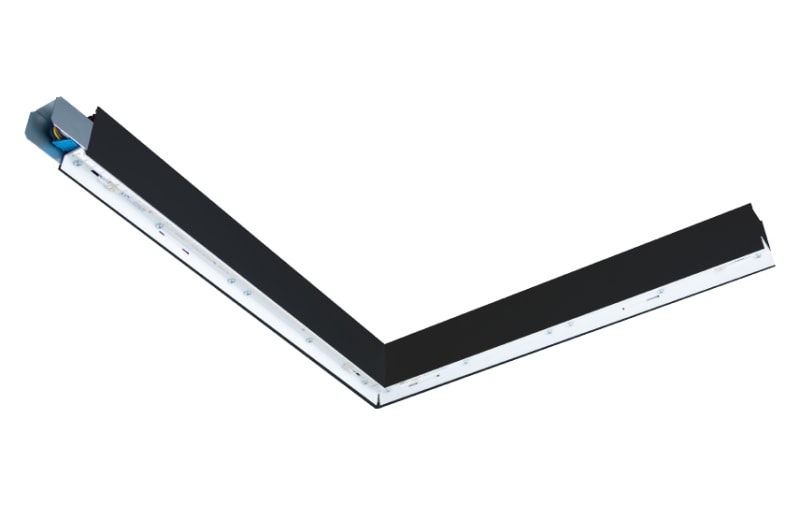

Lineal S Corner Black 18W/830 DALI
Part number8246094720EAN / GTIN5703821178082HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094720 LINEAL CORNER, RA80, 1900lm, SDCM 3, service life 100 000 hours (L80/B10), class In, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094720
- EAN / GTIN
- 5703821178082
- Sales unit
- pcs
- Power
- 18 W
- Efficacy
- 102 lm/W
- Lumen
- 1740lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 15, B16: 24, C10: 25, C16: 41
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 1740lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black
- Module
- Corner
- Wire set
- 1x2m wire kit w/ceiling bracket
- Connection
- 5-pole Winsta mini with 5x1,5mm2 through wiring
- Length (mm) L
- 642
- Width (mm) W
- 42
- Height (mm) H
- 70
- Depth (D)
- 571
- Weight (kg) gross/net
- 2.8 / 2.6
- Packaging dimensions (mm)
- 640 x 585 x 75
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821178082
- SAP 1200374591
- Code 82383748
Product Documentation
Document preview: Lineal S Corner Black 18W/830 DALI (8246094720) — Specification sheet
