SG Armaturen

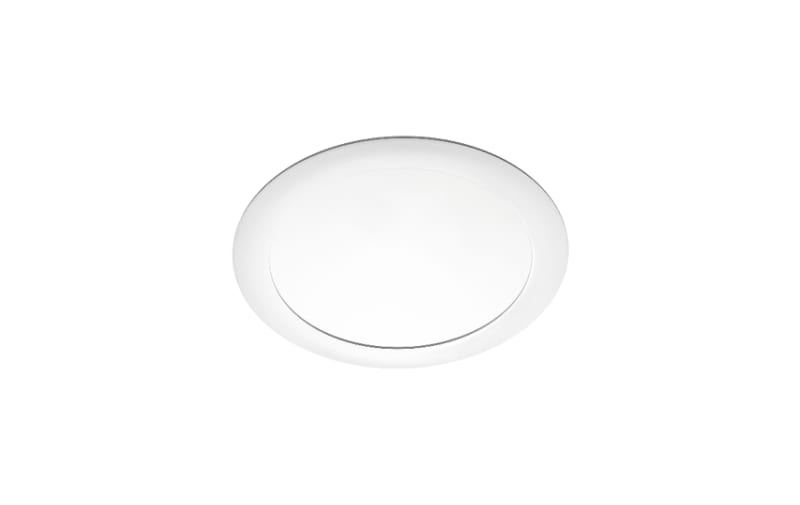

Sense 255 OPAL Prism 13W/827 IP40 DALI
Part number212275EAN / GTIN7021982122750HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212275 SENSE 255 DALI OPAL PRISM.
Technical Specifications
- Manufacturer part number (MPN)
- 212275
- EAN / GTIN
- 7021982122750
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP40
- Power
- 13 W
- Efficacy
- 113 lm/W
- Lumen
- 1350lm
- IP Class
- IP40/IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Recessed, Indoor
- System wattage
- 12W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 57, C16: 92
- Type of light source
- LED
- Luminous flux
- 1350lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II SELV
- IK Class
- IK08
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White smooth (Ral 9016 gloss 30)
- Optics
- Acrylic (PMMA)
- Connection
- 5 pol Linect / screwless terminal block
- Height (mm) H
- 25
- Diameter (mm) D
- 255
- Cut-out (mm)
- 230
- Ceiling void depth (mm)
- 25
- Weight (kg) gross/net
- 1.044 / 0.839
- Packaging dimensions (mm)
- 260 x 260 x 65
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982122750
- SAP 1200104290
- Code 81965431
Product Documentation
Document preview: Sense 255 OPAL Prism 13W/827 IP40 DALI (212275) — Specification sheet
More from SG Armaturen
SG Armaturen
Basic White 50W/830 7450LM
8246087562
SG Armaturen

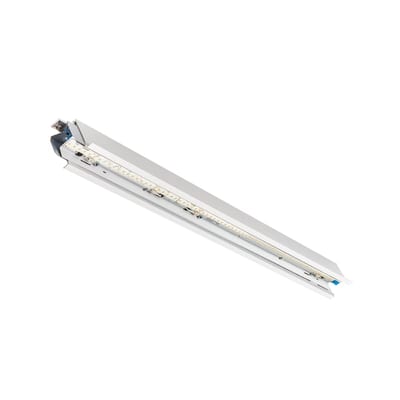

Lineal Recessed 840 White 13W/840 DALI
8246095651
SG Armaturen

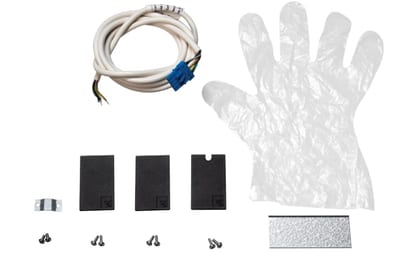

Lineal SURF Startkit Black DALI
8246095910
SG Armaturen

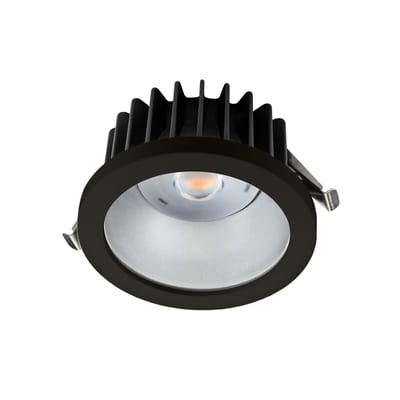

RAX SOFT 150 Black 4000 34W/840
212753
SG Armaturen

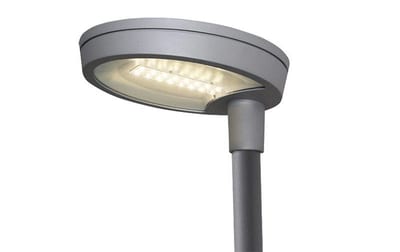

Circled M LENS 90W/740 9020LM
8246094115
SG Armaturen
RAX SOFT 200 Satin 2200 22W/940
212572
SG Armaturen

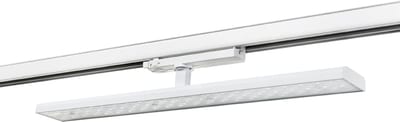

Arena 600 3T White 26W/940 DALI
607043
SG Armaturen

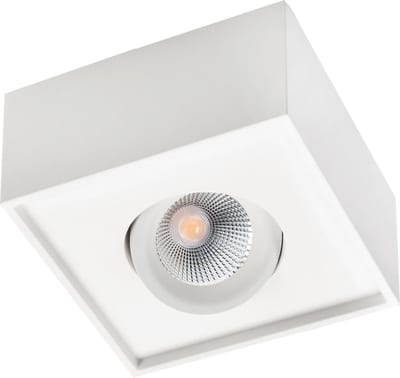

CUBE LUX White 7W/927 DALI
