SG Armaturen
RAX SOFT 200 Satin 2200 22W/940
Part number212572EAN / GTIN7021982125720HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212572 RAX SOFT 200 SATIN 2200 4000K RA>90 22W, SDCM 2, Class II SELV, IP44/20, IK08, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212572
- EAN / GTIN
- 7021982125720
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 22 W
- Efficacy
- 116 lm/W
- Lumen
- 2200lm
- IP Class
- IP54/IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 19W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 2200lm
- Emergency lumen
- 320lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- UGR
- UGR<19 up to 700 mA/2680 lm
- Photobiological safety
- RG 1
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Ceiling void depth (mm)
- 90
- Weight (kg) gross/net
- 1.2 / 1
- Packaging dimensions (mm)
- 240 x 240 x 102
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125720
- SAP 1200566432
- Code 82925884
Product Documentation
Document preview: RAX SOFT 200 Satin 2200 22W/940 (212572) — Specification sheet
More from SG Armaturen
SG Armaturen
Arena 600 3T White 26W/940 DALI
607043
SG Armaturen
CUBE LUX White 7W/927 DALI
902557
SG Armaturen

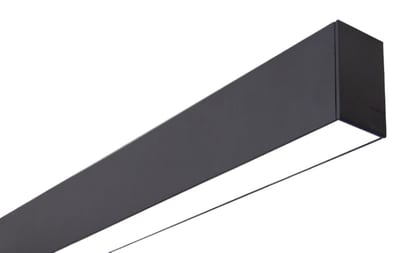

Lineal SURF 1120 18W/830 Black DALI
8246095826
SG Armaturen

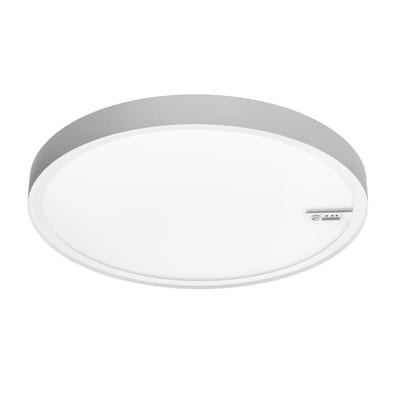

DISC 480 Connect White 36W/940
606240
SG Armaturen

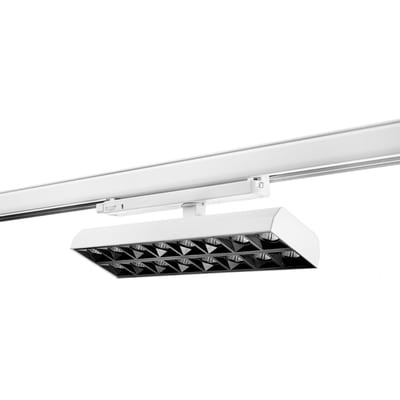

Inspire 300 3T White 34W/930 DALI
212461
SG Armaturen

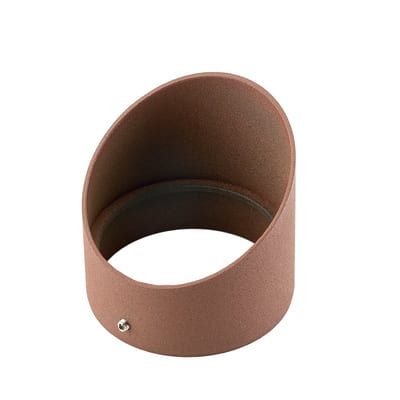

Hovden MINI Shielding Corten
630097
SG Armaturen

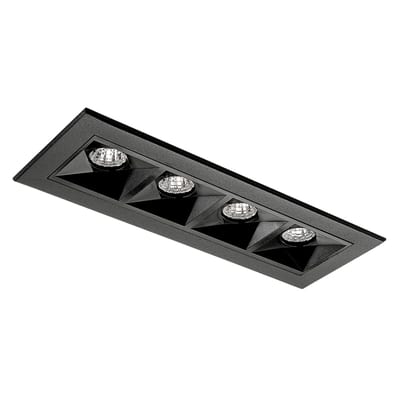

Inspire R 150 Black 8W/930 DALI
212424
SG Armaturen

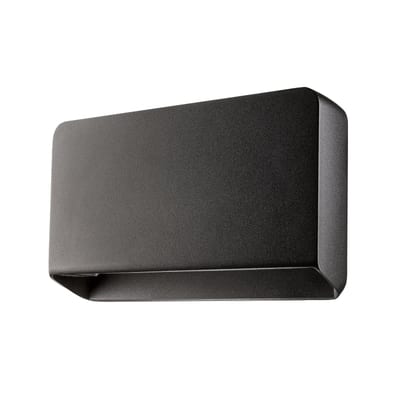

Arlon Black 10W/840 (653622)
