SG Armaturen

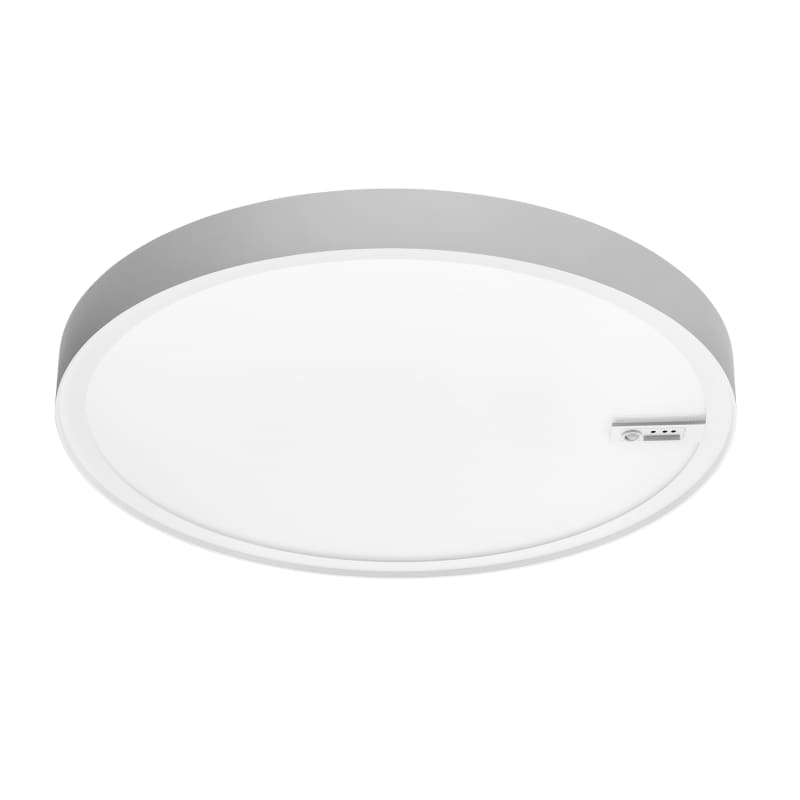

DISC 480 Connect White 36W/940
Part number606240EAN / GTIN7021986062403HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606240 DISC 480 CONNECT WHITE 4000K RA>90, 36W, 3213lm, Ra>90, SDCM 3, L80/B20>100,000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606240
- EAN / GTIN
- 7021986062403
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 36 W
- Efficacy
- 118 lm/W
- Lumen
- 3420lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 29W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 20, B16: 32, C10: 33, C16: 54
- Leakage current (mA)
- 0.50
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 3420lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Type
- Connect
- Luminaire class
- Class II
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 480
- Connection
- 3 pole Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062403
- SAP 1200888904
- Code 84131595
Product Documentation
Document preview: DISC 480 Connect White 36W/940 (606240) — Specification sheet
More from SG Armaturen
SG Armaturen
Inspire 300 3T White 34W/930 DALI
212461
SG Armaturen
Hovden MINI Shielding Corten
630097
SG Armaturen
Inspire R 150 Black 8W/930 DALI
212424
SG Armaturen
Arlon Black 10W/840 (653622)
SG Armaturen
Arlon Round White 3000K DALI
653611
SG Armaturen
Herning Pole 2,5M Ø60 Corten
623974
SG Armaturen

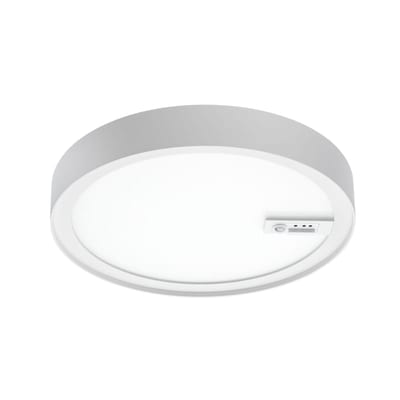

DISC 290 Connect White 17W/940
