SG Armaturen

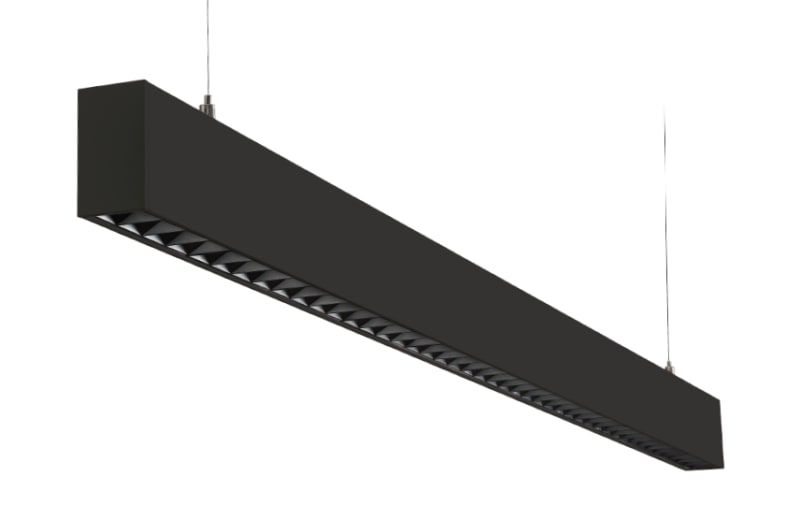

Inspire 1200 Black 34W/830
Part number212086EAN / GTIN7021982120862HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212086 INSPIRE BLACK 3000K 36W, 4140lm, CRI80, SDCM 3, L80/B20, A++, Class In, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 212086
- EAN / GTIN
- 7021982120862
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 34 W
- Efficacy
- 122 lm/W
- Lumen
- 4140lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Suspended, Indoor
- System wattage
- 34W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 14, B16: 23, C10: 22, C16: 36
- Leakage current (mA)
- 0.31
- Type of light source
- LED
- Luminous flux
- 4140lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 50/50%
- Optic
- Cubic Optic Black
- UGR
- UGR<10
- Photobiological safety
- RG 1
- Type
- On/Off
- Luminaire class
- Class I
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Polycarbonat (PC)
- Wire set
- 2x2m wire kit
- Cable
- Cable 3x0,75mm² 2,5m
- Length (mm) L
- 1241
- Width (mm) W
- 38
- Height (mm) H
- 67
- Weight (kg) gross/net
- 3.1 / 2.5
- Packaging dimensions (mm)
- 1345 x 125 x 88
- Device emplacement
- Indoor positioning
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- White
- Material cover
- Plastic, transparent
- Type of grid
- None
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming Its Wave Reduction
- No
- No dim function
- Yes
- Colour consistency (McAdam ellipse)
- SDCM3
- Light outlet
- Direct/indirect
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- A++
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- I
- Emergency power supply integrated
- No
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 34 W
- Rated luminous flux according to IEC 62722-2-1
- 4140 lm
- Colour of light
- White
- Luminaire efficacy
- 122 lm/W
- Colour rendering index CRI
- 80-89
- Unified Glare Ratio (UGR)
- 9.2
- Power factor
- 100
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 38 mm
- Height/depth
- 67 mm
- Length
- 1241 mm
- Type of wiring
- Ending
- Number of poles
- 1
- Conductor cross section
- 0.75 mm²
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982120862
- SAP 1200423448
- Code 82466453
Product Documentation
Document preview: Inspire 1200 Black 34W/830 (212086) — Specification sheet
