SG Armaturen

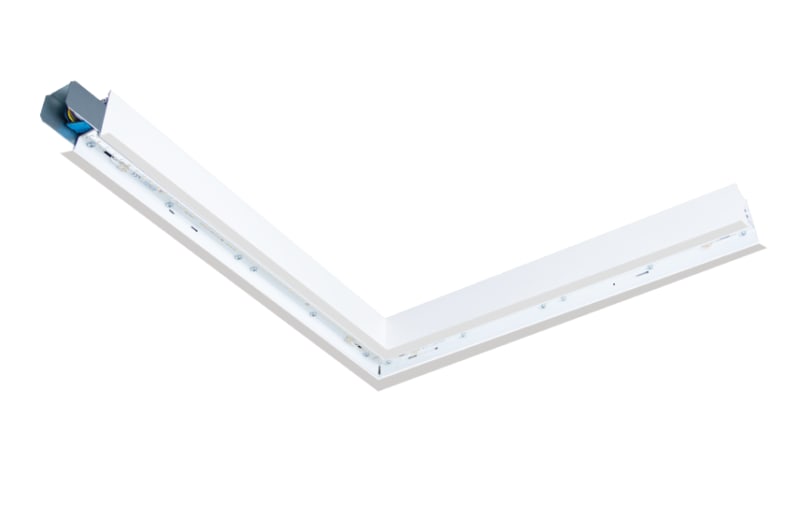

Lineal Recessed Corner White 17W/840 DALI
Part number8246095716EAN / GTIN5703821180221HS code9405.99
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246095716 LINEAL RECESSED CORNER WHITE 4000K DALI 17W 1970lm RA>80, Class In, IP20, SDCM 3.
Technical Specifications
- Manufacturer part number (MPN)
- 8246095716
- EAN / GTIN
- 5703821180221
- Sales unit
- pcs
- Power
- 17 W
- Efficacy
- 116 lm/W
- Lumen
- 1970lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 15, B16: 24, C10: 24, C16: 38
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 1970lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- UGR
- UGR<28
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Module
- Corner
- Connection
- 5-pole Winsta mini with 5x1,5mm2 through wiring
- Length (mm) L
- 627
- Width (mm) W
- 581
- Height (mm) H
- 70
- Weight (kg) gross/net
- 2.8 / 2.294
- Packaging dimensions (mm)
- 652 x 604 x 81
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.99
Cross References
- EAN 5703821180221
- SAP 1200528773
- Code 82680016
Product Documentation
Document preview: Lineal Recessed Corner White 17W/840 DALI (8246095716) — Specification sheet
More from SG Armaturen
SG Armaturen
Shopline 3T X-Joint Black
314435
SG Armaturen

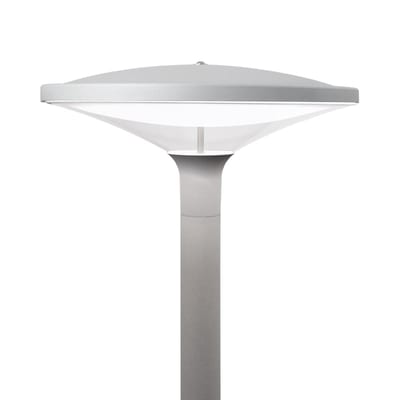

Place 2500LM Grey 4000K
641961
SG Armaturen
Inspire R 300 White 15W/940 DALI
212438
SG Armaturen
Facet D/In White 23W/840 DALI
8246086068
SG Armaturen
Facet II 1200 D/In White 29W/840
8246090407
SG Armaturen

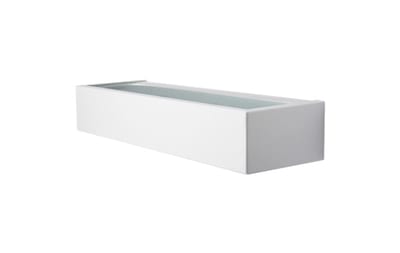

EDGE White 10W/830 IP65
611351
SG Armaturen

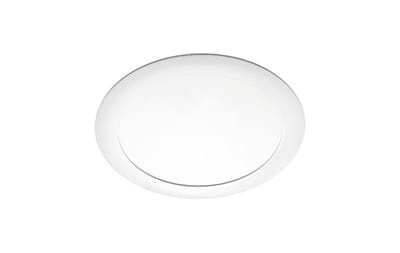

Sense 320 OPAL Prism 17W/827 IP40 DALI
